2016 Honda 400X ABS (2BL-NC47)

Honda 400X ABS (2BL-NC47) Model Year 2016 Specs, Price, Photos Gallery | 400cc Crossover Adventure Style Motorcycle

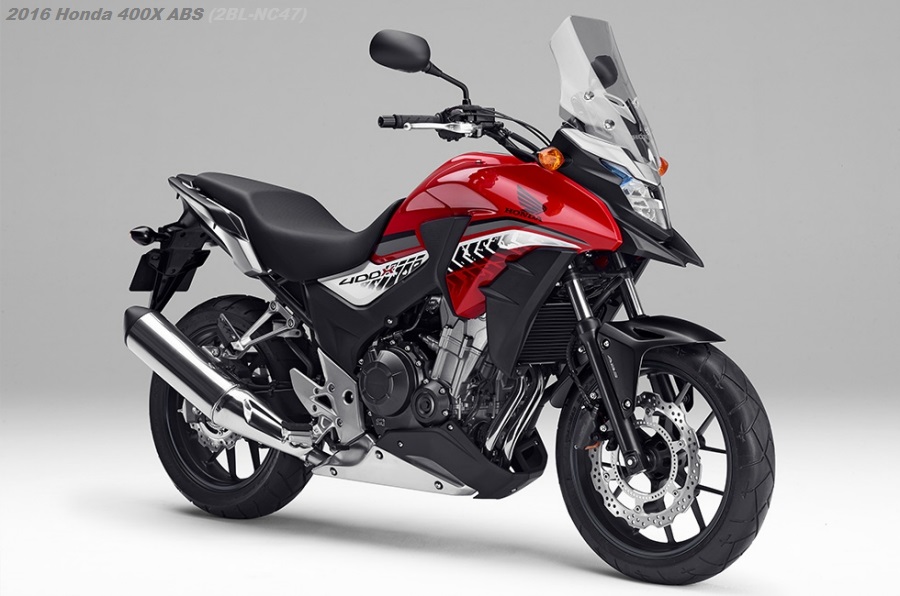

2016 Honda 400X ABS (2BL-NC47) - Red
Photo of Honda 400X ABS (2BL-NC47)
Release date: 2016-02-19.
Body Color: Magna Red.

2016 Model Honda 400X ABS is a crossover adventure style bigbike equipped with 4-stroke DOHC 4-valve in-line 2-cylinder 400cc engine.

Honda 400X is popular as a model that can be used in a wide range of applications from city driving to touring, equipped with an engine with smooth output characteristics from low/middle rotation range to high rotation range in a powerful crossover style that stirs the spirit of adventure. The exterior design of the 400X has been remodeled and renewed. This 2016 model was released on February 19th (Friday).

The 400X inherits the DNA of the flagship model VFR1200X crossover concept, which was the flagship model of the crossover style (at that time). It has been redesigned to follow the dynamic styling concept “FEEL THE ADVENTURE FORM” that raises the spirit of adventure. This was partly due to the adoption of miniaturized LEDs for the headlights. Also, for a more tourer-like feature, the screen, which can be adjusted in height in two steps, standard and high, was 100mm taller than the previous model before it could be switched. Newly designed headlights that use LEDs and LED tail lamps that incorporate a new clear inner lens and have excellent visibility. Furthermore, by adopting a large windscreen with a height extended by 100 mm, the windbreak effect has been greatly increased, and both comfortable driving performance and styling that creates a presence at high speeds have been achieved. The design of the front part has LED position lamps placed on the upper left and right ends of the headlights to create a fearless look. In addition, on the side of the car body, we adopted stripes with a tire pattern as a motif, which makes us imagine a sophisticated and powerful crossover style.

The front suspension is equipped with a preload adjuster that can be adjusted according to the usage conditions. In addition, the ride quality has been improved by changing the settings.
The fuel tank uses a hinge-type cap that is convenient when refueling. In addition, we are working to improve convenience by adopting a brake lever that can be adjusted in 5 steps according to the size and grip strength of the rider’s hand. This is a model equipped with ABS.
In addition to Magna Red and Pearl Sunbeam White, three body colors are available: Matte Ballistic Black Metallic, which is solid and emphasizes the crossover style.

2016 Honda 400X Features

Styling

Following the styling concept of the high-end model of the crossover series, “FEEL THE ADVENTURE FORM”, while maintaining the attractiveness of being lightweight, compact and easy to handle, with the power to stir up the adventurous spirit and the urban and sophisticated proportions. As a crossover model with an intermediate displacement, the style emphasizes a powerful image that stirs even more adventurous spirit. In the front part, LED position lamps are placed on the upper left and right of the newly designed LED headlights, creating a powerful image of 400X in a fearless style in addition to advancedness. In addition, the tail lamp is also reminiscent of the powerful image of 400X, and we have adopted an LED tail lamp that incorporates a clear inner lens that insists on advancedness and individuality.

Power unit

The operation load of the gear change pedal is reduced and operated while maintaining the characteristics of the water-cooled 4-stroke DOHC 4-valve in-line 2-cylinder 400cc engine, which has a reputation for smooth and easy-to-use output characteristics from low and medium revs to high revs. By improving the feeling, it is possible to drive comfortably even in urban areas where there are many gear changes.

Body/Equipment

For comfortable driving on the highway, the windscreen has been extended 100 mm upward, and the screen position can be selected from two, standard and high, to greatly improve windproof performance. In addition, by installing a duct at an appropriate position on the windscreen, the pressure difference between the front and back of the rider is reduced to ensure comfort, and by suppressing turbulence around the rider’s head, it is caused by the running wind. The burden on the rider has been reduced.
By adding a preload adjustment mechanism to the front suspension, it is possible to ride in a riding posture that suits the rider’s preference according to the situation such as 1 person riding, 2 people riding, and load capacity. In addition, a blue alumite-treated fork cap has been adopted to create a luxurious feel around the handlebars.
Equipped with a large capacity 17L fuel tank to secure a cruising range. In addition, a hinge structure type fuel cap is used to improve convenience when refueling with gasoline.
In addition, a brake lever with a 5-step adjustment mechanism has been adopted so that the lever position can be adjusted to the rider’s preference.

Color variations

In addition to Magna Red and Pearl Sunbeam White with tire pattern stripes on the side of the car body to create a powerful image, three colors are available: Matt Ballistic Black Metallic, which is solid and emphasizes the crossover style.

2016 Honda 400X Photos Gallery

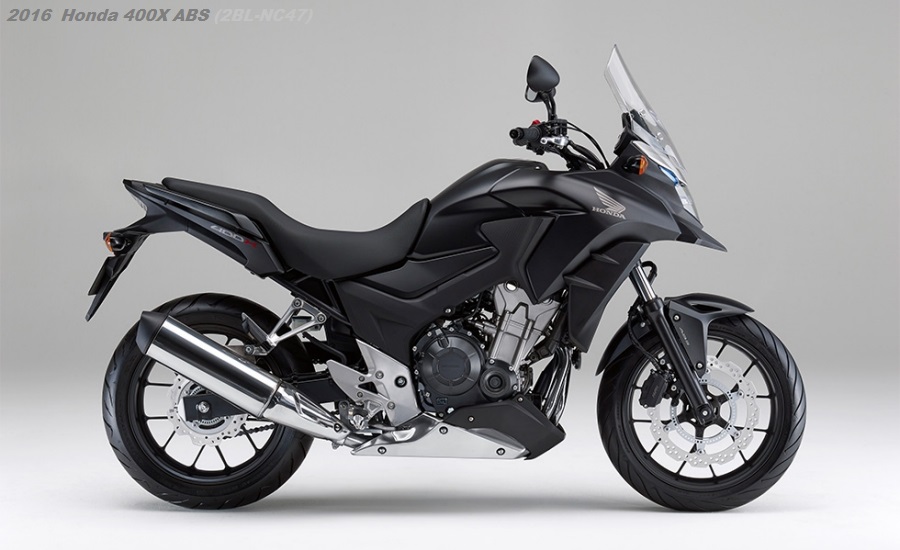

Honda 400X ABS 2016 Black
Picture of 2016 Honda 400X ABS.
Colour: Matte Ballistic Black Metallic.

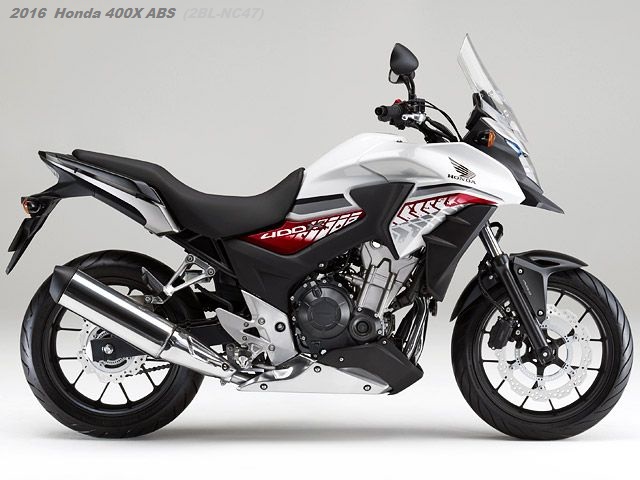

2016 Honda 400X NC47 White
Image of 2016 Honda 400X ABS (2BL-NC47).
Body Color: Pearl Sunbeam White.

2016 Honda 400X Specifications

Common name 400X
Vehicle name/model Honda 2BL-NC47
Overall length x Width x Height (mm) 2,085 x 830 x 1,335
Wheelbase (mm) 1,410
Minimum ground clearance (mm) 145
Seat height (mm) 795
Vehicle weight (kg) 194 [196]
Riding capacity (persons) 2
Fuel consumption rate* 1(km/L) Ministry of Land, Infrastructure, Transport and Tourism notification value
Fuel consumption value
39.7 (60km/h constant-land driving test value) (when two people are on board)
WMTC mode value (class) 28.2 (class 3-2)* 2 )
Minimum turning radius (m) 2.7
Engine model/type NC47E/water-cooled 4-stroke DOHC 4-valve in-line 2-cylinder
Total displacement (cm3) 399
Inner diameter x stroke (mm) 67.0 x 56.6
Compression ratio 11.0
Maximum output (kW [PS]/rpm) 34 [46]/9,500
Maximum torque (N ・ m [kgf ・ m]/rpm) 37 [3.8]/7,500
Fuel supply device type Electronic type (electronically controlled fuel injection device (PGM-FI))
Starting method Self-type
Ignition system type Full transistor battery ignition
Lubrication method Pumped splash combined type
Fuel tank capacity (L) 17
Clutch type Wet multi-plate coil spring type
Transmission type Always meshing 6-speed return
Gear ratio 1st Speed 3.285
2nd Speed 2.105
3rd Speed 1.600
4th Speed 1.300
5th Speed 1.150
6th Speed 1.043
Reduction ratio (primary/secondary) 2.029/3.000
Caster angle (degrees)/trail amount (mm) 25 ° 55´/105
Tires Front 120/70ZR 17 M/C (58W)
Rear 160/60ZR 17 M/C (69W)
Brake type Front Hydraulic disc
Rear Hydraulic disc
Suspension system Front Telescopic method
Rear Swing arm type (Prolink)
Frame format Diamond
  • * 1 The fuel consumption rate is the value under the specified test conditions. It depends on various conditions such as the customer’s usage environment (weather, traffic jam, etc.), driving method, vehicle condition (equipment, specifications) and maintenance condition.
  • * 2 The WMTC mode value is a calculated value based on the exhaust gas test results measured in the driving mode, which is an international standard including starting, accelerating, and stopping. Driving mode classes are categorized by displacement and top speed

2016 Honda 400X Price List

Planned sales volume (domestic/annual) : 900 units.
Manufacturer’s suggested retail price (including 8% consumption tax):

  • Honda 400X Matte Ballistic Black Metallic : 709,560 yen (main unit price excluding consumption tax 657,000 yen)
  • Honda 400X Magna Red/Pearl Sunbeam White : 731,160 yen (main unit price excluding consumption tax 677,000 yen)
  • Honda 400X ABS Matte Ballistic Black Metallic : 760,320 yen (main unit price excluding consumption tax 704,000 yen)
  • Honda 400X ABS Magna Red/Pearl Sunbeam White : 781,920 yen (main unit price excluding consumption tax 724,000 yen)

Prices (including recycling costs) do not include insurance premiums, taxes (excluding consumption tax), registration costs, etc.
