Honda 750 Custom Exclusive 1980

American-style Sports Touring Motorcycle “Honda 750 Custom Exclusive” Specs, Overview, Price & Photos Gallery

Honda Motor released a American-style bigbike Honda 750 Custom Exclusive with a relaxed ride and a dignified personality, and at the same time, one of both types of “Honda CB750K / F”, on June 2nd, 1980 with full equipment. Although it is not in the motorbike name, it is an American model of the CB750 series. It featured four heavy mufflers, a large steering wheel, a low seat that was easy to put your feet on, a sophisticated body color (two-tone color finish), front double and rear single triple disc brakes.

Honda 750 Custom Exclusive Touring Motorcycle

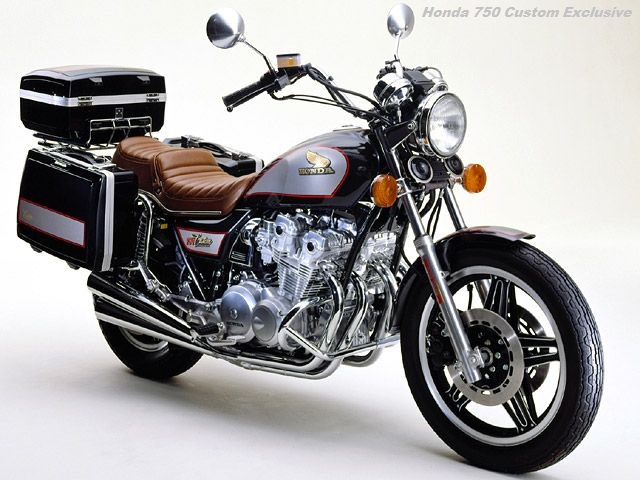

Picture of 1980 Honda 750 Custom Exclusive with bag attached.
Release date: 1980-06-02. Body Color: Silver Black.

The Honda 750 Custom Exclusive, which appeared in 1980 as an American-style model linked to the CB750 series, although it did not have the “CB” prefix in its name. In the 1980s, when “custom” entered the car name, it was Honda’s style to become an American type. Nonetheless, the American cars of the time were not the low-and-long styles of later years, but low-slung seats, pull-back steering wheels, and slightly slant front forks. It sought a relaxed riding style and ride comfort. The installed engine was the same 748cc air-cooled 4-cylinder DOHC 4-valve unit as the CB750 series of the same era, and exhibited 65ps, which was 3ps lower than the CB750F. In 1981, an American model of the CB750 series appeared, both in name and reality, called the CB750 Custom.

This Honda 750 Custom Exclusive has 4 mufflers full of dignity, a large steering wheel, a low seat that makes it easy to put your feet on, a sophisticated body color (two-tone color finish), and 2 front wheels and 1 rear wheel. It is an American-style superlative large-sized two-wheeled vehicle equipped with (triple) disc brakes and other features that allow you to enjoy a leisurely ride even in urban areas and on highways.
In addition, the “CB750K” type has double disc brakes on the front wheels and a new stripe design on the body. The CB750F type is equipped with a full range of equipment, such as the adoption of halogen headlights and a thicker rear brake pad for greater durability.
In addition, the domestic sales plan is to sell a limited number of 1,200 units of the “750 Custom Exclusive”. Both types of “CB750K/F” are scheduled to sell 9,800 units a year.

Main Features of Honda 750 Custom Exclusive

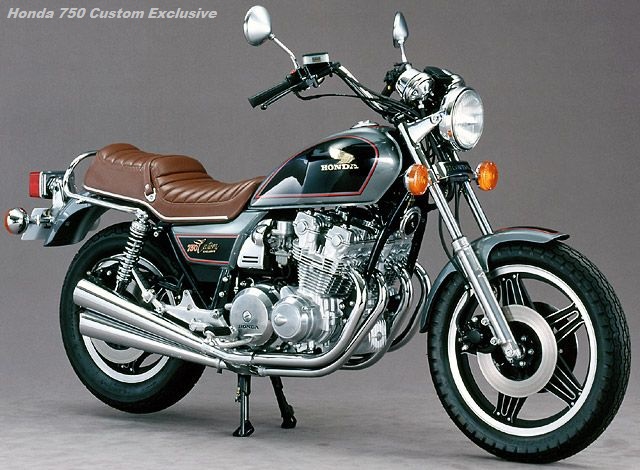

1980 Honda 750 Custom Exclusive
Photo of Honda 750 Custom Exclusive model year 1980

Engine

Equipped with a DOHC, 4-cylinder, 16-valve engine with a total displacement of 748cc and a maximum output of 65 horsepower at 9,000 rpm. Increases torque in the low and medium speed range, demonstrating smooth driving performance from low speed to high speed.

Motorcycle body

Newly designed lightweight and highly rigid double cradle frame that enables a low seat height.

Brakes

Triple disc brakes with double front wheels and single rear wheels for stable braking power even at high speeds.

Suspension

A rear FVQ damper with a damping force adjustment mechanism that can be adjusted optimally according to road conditions, load, speed, etc.

Design

Uses a large steering wheel and a low stepped seat with brown ground skin that is easy to put your feet on and comfortable to ride. The teardrop-shaped tank with beautiful curves, four heavy mufflers, and all-aluminum COMSTAR wheels painted black with silver spokes create a solid side view. In addition, the tank, side covers, and fenders are unified in a two-tone color for a calm body color, and each part is chrome plated to create a stately body design.

Equipment

  • Use of a functional hand chalk that can be operated while holding the grip.
  • The shift lever, step, and rear brake pedal are made of lightweight and robust duralumin forging.
  • Equipped with halogen headlights.
  • Lightweight all-aluminum Comstar wheels that combine flexibility and rigidity are fitted with tubeless tires for greater safety.

Honda 750 Series Price List

Type 750 Custom
Exclusive
CB750K CB750F
Standard Cash Price 638,000 538,000 548,000
  • * The Hokkaido price is 7,000 yen higher for each type.

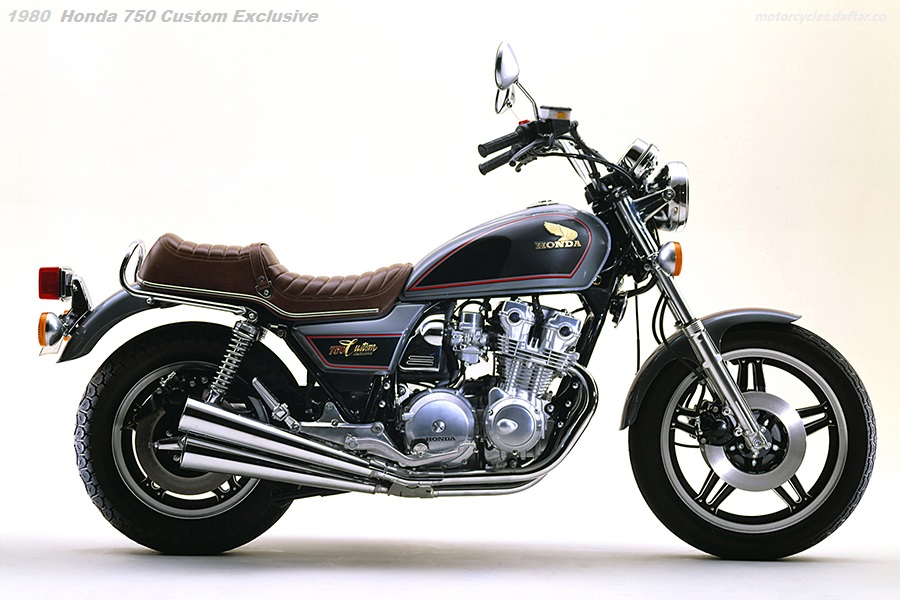

Honda 750 Custom Exclusive 1980
Honda 750 Custom Exclusive
motorcycle image wallpaper.

Honda 750 Custom Exclusive Specifications

Main specs of Honda 750 Custom Exclusive, CB750K and CB750F :

Model 750 Custom
Exclusive
CB750K CB750F
Length×Width×Height (m) 2.290×0.880×1.195 2.225×0.885×1.150 2.190×0.795×1.125
Wheel Distance (m) 1.540 1.515
Ground Clearance (m) 0.135 0.145 0.150
Vehicle weight , Dry (kg) 252 | 236 253 | 234 247 | 228
Fuel tank capacity (L) 16 20
Engine Air-cooled 4-cycle DOHC 4-cylinder
Displacement (cm3 ) 748
Inner Diameter x Stroke (mm) 62×62
Max output (ps/rpm) 65/9000 68/9000
Max torque (kg-m/rpm) 5.9/7000 5.9 /8000
Transmission type Constant mesh 5-speed return
Frame Format Double Cradle
Tire Size (Front) 110/90-19 62H 3.25H19- 4PR
(Rear) 130/90-16 67H 4.00H18-4PR
Brake type (Front) Hydraulic double disc Hydraulic double disc Hydraulic Double Disc
(Rear) hydraulic disc leading trailing hydraulic disc
