1980-1983 Honda CB250RS (MC02), A Lightweight Road Sports Vehicle Specs, Photos
 |

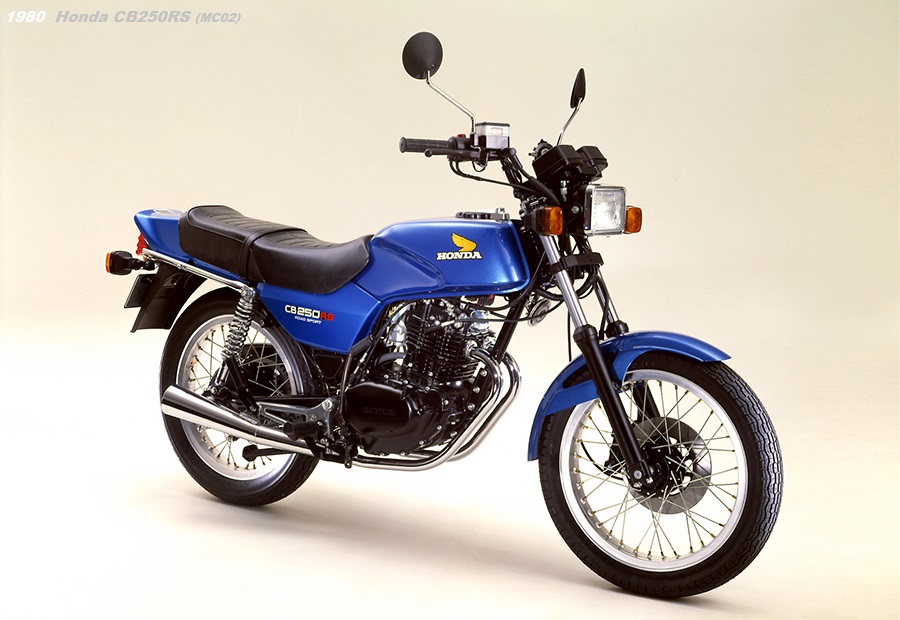

| 1980 Honda CB250RS picture Model: MC02. Colour: Blue |
Model name MC02. This is a 250cc class (light motorcycle) road sports bike developed with the aim of achieving high maneuverability while thoroughly pursuing weight reduction.
Honda Motor has released the Honda CB250RS, a lightweight, highly manoeuvrable motorcycle with a fresh and unique style. It was released on March 1st 1980. CB250RS is a naked type motorcycle manufactured and sold from 1980 to 1983.
1980 Honda CB250RS (MC02) photo
This Honda CB250RS was developed with the aim of light weight and high maneuverability, which are the origins of sports motorbikes. Equipped with a lightweight 248cc, 25-horsepower 4-cycle single-cylinder engine, and a lightweight and slender Daihi Yamondo frame, the 4-cycle road sports car is the top class in Japan (128 kg dry weight).
In addition, the Honda CB650 Custom is equipped with an engine with smooth torque characteristics, and with its large up-handle and low stepped seat, it is a two-wheeler with excellent total balance that makes it easy to handle and enjoy a relaxed ride. is a car.
1980 Honda CB250RS Features
 |

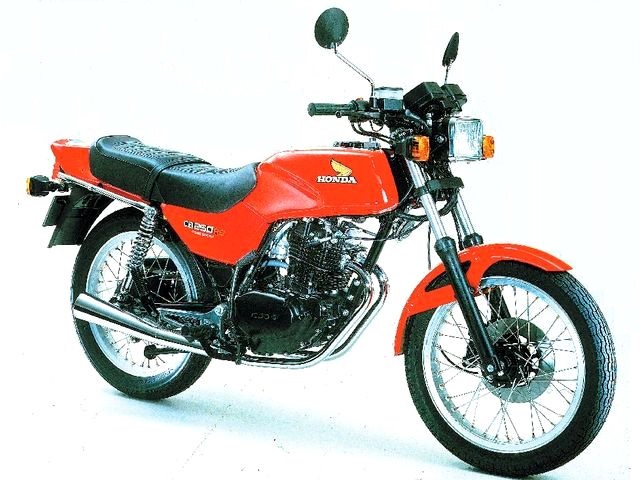

| 1980 Honda CB250RS photo. （ホンダ シービーにひゃくごじゅうアールエス） Body colour: red. |
Announced on February 27, 1980, released on March 1, 1980. Set two models, Type 1 with flat handle and Type 2 with up handle. The muffler has two left and right extensions from the dual exhaust manifold pipe. Cowl is set as an option.
Main Features of Honda CB250RS:
- Equipped with a 4-cycle, single-cylinder, 4-valve, double exhaust pipe lightweight engine (25 horsepower). Built-in balancer mechanism reduces vibration.
- Uses a lightweight and slim diamond frame that enables a low seat height.
- The front and rear suspension (rear FVQ type) with excellent ride comfort and road following characteristics is adopted.
- Square headlights, smartly designed fuel tank, seat, rear cowl, etc. create a rugged and slim style.
- The front wheel disc brake with excellent braking performance, highly visible meters, highly visible rectangular turn signal lamps and tail lamps are all considered to improve safety.
- The low fuel consumption of 50km per liter (50km/h level driving test value) improves economy.
Honda CB250RS Price/Sales Plan
Honda CB250RS 1980 standard chash price was ¥298,000 (Sapporo area price was ¥304,000).
Domestic, annual sales plan 15,000 units.
Prices exclude some remote islands
1980 Honda CB250RS Specifications
| Model | CB250RS (model MC02) | |
| Length×Width×Height (m) | 20×0.770×1.100 | |
| Wheel Distance (m) | 1.350 | |
| Vehicle weight (kg) | Drying:128,Maintenance:139 | |
| Fuel tank capacity (L) | 12 | |
| Fuel consumption (km/L) | 50(50km/h level running test value) | |
| Engine type | Air-cooled 4-cycle single cylinder | |
| Total Displacement (cm3) | 248 | |
| Inner Diameter x Stroke (mm) | 74.0×57.8 | |
| Max output (PS/rpm) | 25/8,500 | |
| Max torque (kg-m/rpm) | 2.2/7,000 | |
| Starting method | Kick type | |
| Transmission | 5 speed return | |
| Frame format | Diamond format | |
| Tire size | Front | 3.00S18-4PR |
| Rear | 4.10S18-4PR | |
| Brake type | Front | Hydraulic disc |
| Rear | Rod leading trailing | |
