2014-2016 Honda CBR250R ABS (New Facelift) with a Completely Redesigned Appearance and Improved Parts also “Special Edition” with a Racing Image.
 |

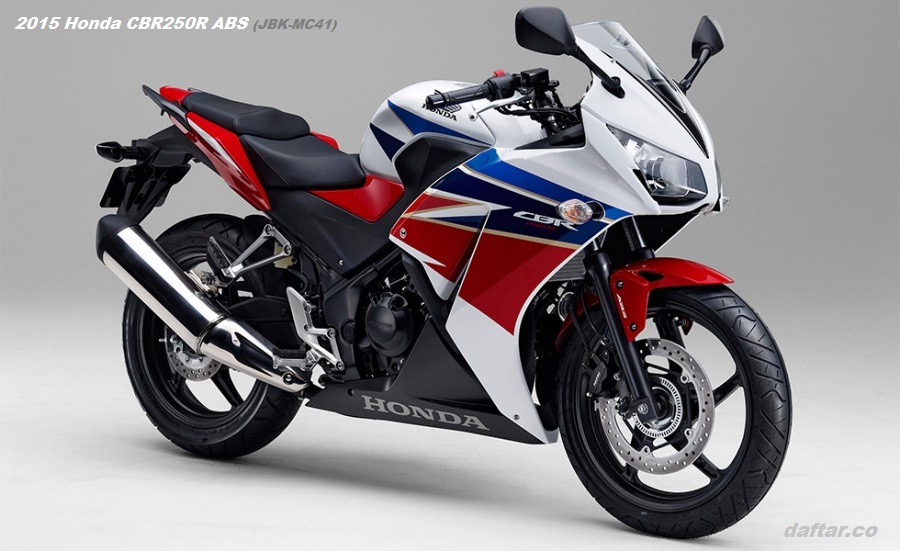

| Photo of 2015 Honda CBR250R ABS (JBK-MC41). Color: Ross White. Release date: 2015-12-07 |
The 250cc road sports model “Honda CBR250R” will be released on April 24th (Thursday) 2014 with a new appearance and increased engine output. In addition, the “Honda CBR250R ABS Special Edition” with the coloring of the “Repsol Honda Team” that is active in MotoGP will be released on May 20th (Tuesday) 2014.
The styling of the 2014 New Honda CBR250R uses twin-lens type headlights for a sportier front face. In addition, the design of the front cowl, middle cowl, tail cowl, and side cover has been redesigned. In addition, the shape of the fuel tank and screen has been changed to enhance the fearless image. In addition, the seat and side covers have a slim shape to improve foot comfort.
 |

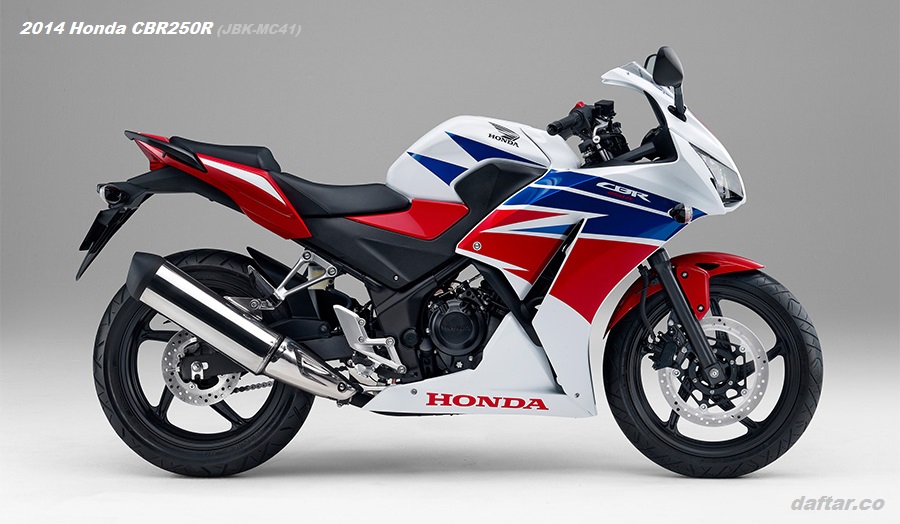

| Picture of 2014 Honda CBR250R Non-ABS MC41. Color: Ross White. Release date: 2014-04-24 |
By changing the shape of the intake duct and connecting tube of the intake system and the valve timing, the engine has achieved a maximum output of 21kW *, which is 1kW higher than the conventional model, while keeping the torque in the low and medium speed range. increase. In the 60km / h constant-land driving test value, it also achieves good fuel efficiency of 50.1km / L, which is 0.9km / L higher than the conventional model. The new shape of the stainless steel muffler enhances the quality and sportiness and contributes to the stylish appearance.
The body color of CBR250R, including ABS type, is set in three colors: loss white with tricolor image, vivid millennium red, and fearless black. Honda CBR250R ABS Special Edition is set in one color of Nitrik Orange, which is based on the coloring of Repsol Honda Team, which is active in the MotoGP class of the Road Racing World Championship. The model is full of racing image, such as adopting a special orange color for the wheels.
“2015 CBR250R ABS Special Edition (Lemon Ice Yellow)” with some changes in the coloring of the light two-wheeled road sports model “CBR250R” and special colors.
The coloring of the light two-wheeled road sports model “CBR250R” will be partially changed and will be released on January 15, 2016 (Friday). In addition, the special color “CBR250R ABS Special Edition” will be released on December 7, 2015 (Monday) for a limited time. The order period is from November 13, 2015 (Friday) to December 25, 2015 (Friday).
Changed the coloring design of “Tricolor”, which is the symbolic color of Honda sports models. Based on Ross White, bright red and two different colors of blue are applied, and a new gold line is arranged, and the under cowl is black to make the image of tricolor stand out more vividly. I am. In addition, by changing the color tone of the coloring applied to the bottom of the windscreen, a sportier image is produced.
In addition to the ABS type, the body color is available in all three colors, including the tricolor image of Ross White, the current Millennium Red, and Black.
 |

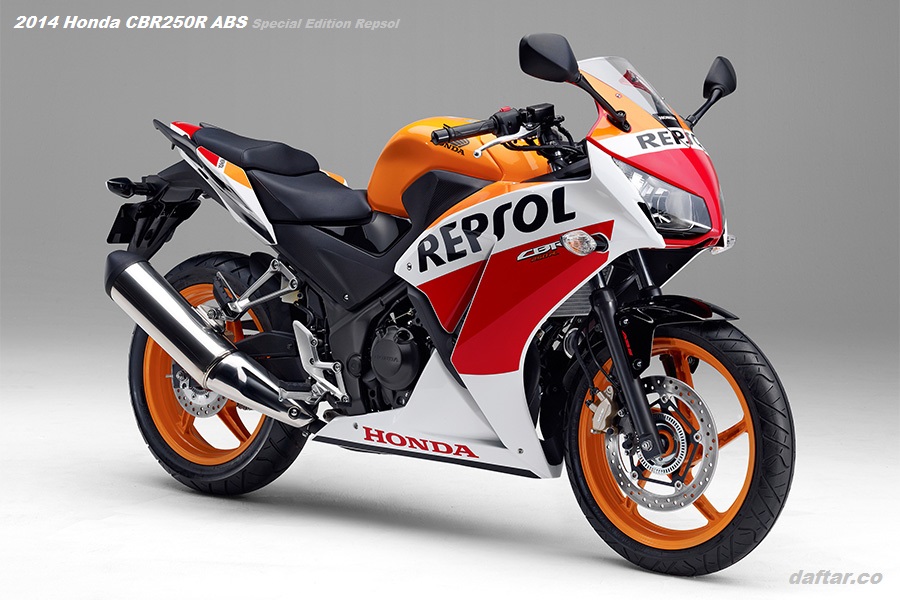

| 2014 Honda CBR250R ABS Special Repsol Edition wallpaper. Color: Nitrik Orange. Release date: 2014-05-20. |
The CBR250R ABS Special Edition uses a high-contrast coloring design that is not bound by the existing image of the CBR series. Lemon Ice Yellow and Candy Energy Orange, which propose the new charm of CBR250R, are available in two colors.
 |

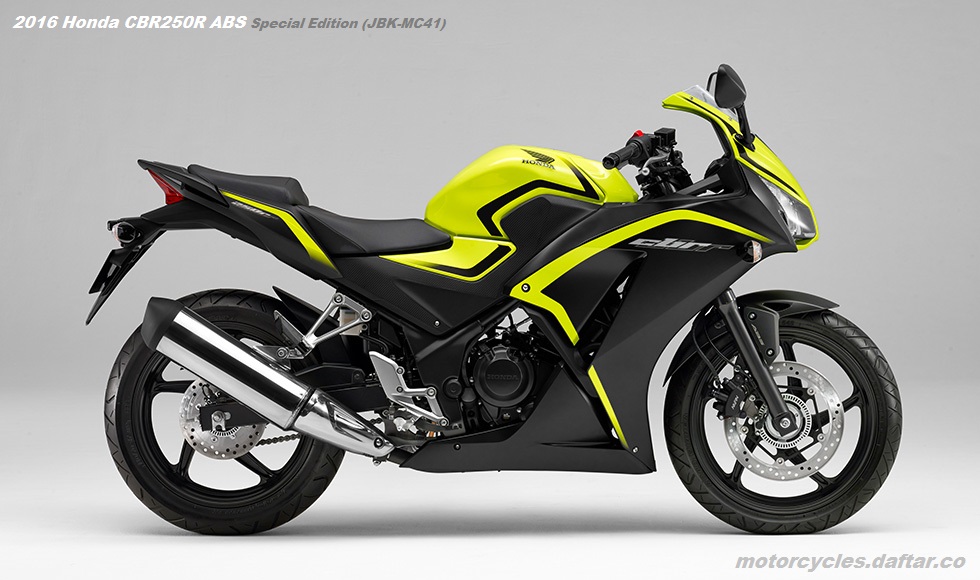

| Image of New Honda CBR250R ABS Special Edition (JBK-MC41). Color: Lemon Ice Yellow. Release date: 2016-01-15. |
Price of 2015-2016 Honda CBR250R ABS (JBK-MC41) Facelift with Double Headlights / Front Lamp
Planned sales volume (domestic/annual) in Japan
Series total 1,900 units
Manufacturer’s suggested retail price in Japan 2015 (including 8% consumption tax)
- 2015 Honda CBR250R Millennium Red, Black : 498,960 yen (main unit price excluding consumption tax 462,000 yen)
- 2014 Honda CBR250R Non-ABS Ross White : 515,160 yen (main unit price excluding consumption tax 477,000 yen)
- 2015 CBR250R ABS Millennium Red, Black : 549,720 yen (main unit price excluding consumption tax 509,000 yen)
- 2015 CBR250R ABS Ross White : 565,920 yen (main unit price excluding consumption tax 524,000 yen)
- 2014 CBR250R ABS Special Repsol Edition 576,720 yen (main unit price excluding consumption tax 534,000 yen)
- 2015 Honda CBR250R ABS Special Color (Lemon Ice Yellow): 560,520 yen (main unit price excluding consumption tax 519,000 yen)
2016 Honda CBR250R ABS (JBK-MC41) Main specifications
| Predessor | 2013 CBR250R Single Headlamp | |
| Vehicle name/model | Honda/JBK-MC41 | |
| Overall length x Width x Height (mm) | 2,035 x 720 x 1,120 | |
| Wheelbase (mm) | 1,380 | |
| Minimum ground clearance (mm) | 145 | |
| Seat height (mm) | 780 | |
| Vehicle weight (kg) | 161 [164] | |
| Riding capacity (persons) | 2 | |
| Minimum turning radius (m) | 2.5 | |
| Engine model/type | MC41E/Water-cooled 4-stroke DOHC 4-valve single cylinder | |
| Total displacement (cm3) | 249 | |
| Inner diameter x stroke (mm) | 76.0 x 55.0 | |
| compression ratio | 10.7 | |
| Maximum output (kW [PS]/rpm) | 21 [29]/9,000 | |
| Maximum torque (N ・ m [kgf ・ m]/rpm) | 23 [2.3]/7,500 | |
| Fuel consumption rate* 2(km/L) | Ministry of Land, Infrastructure, Transport and Tourism notification value Constant fuel consumption value |
50.1 (60km/h constant ground driving test value) When two people are on board |
| WMTC mode value (class) | 32.1 (class 3-1)* 3 when one person is on board | |
| Fuel supply device type | Electronic control fuel injection device (PGM-FI) | |
| Starting method | Self-type | |
| Ignition system type | Full transistor battery ignition | |
| Lubrication method | Pressure-fed splash combination type | |
| Fuel tank capacity (L) | 13 | |
| Clutch type | Wet multi-plate coil spring type | |
| Transmission type | Always meshing 6-speed return | |
| Gear ratio | 1 Speed | 3.416 |
| 2 Speed | 2.250 | |
| 3 speed | 1.650 | |
| 4 speed | 1.350 | |
| 5 speed | 1.166 | |
| 6 speed | 1.038 | |
| Reduction ratio (1st/2nd) | 2.807/2.571 | |
| Caster angle (degrees)/trail amount (mm) | 25 ° 30´/98 | |
| Tires | Front | 110/70-17M/C 54S |
| Rear | 140/70-17M/C 66S | |
| Brake type | Front | Hydraulic disc |
| Rear | Hydraulic disc | |
| Suspension method | Previous | Telescopic method |
| Rear | Swing arm type (Prolink) | |
| frame format | diamond | |
