1984 Honda CBR400F Endurance (NC17)
Honda CBR400F Endurance is a sports bike with two-lamp headlights, half fairing and powered by in-line 4-cylinder engine (total displacement 399 cm3) that uses a rotation speed response type valve suspension mechanism (REV), which was released in May 31st, 1984.
 |

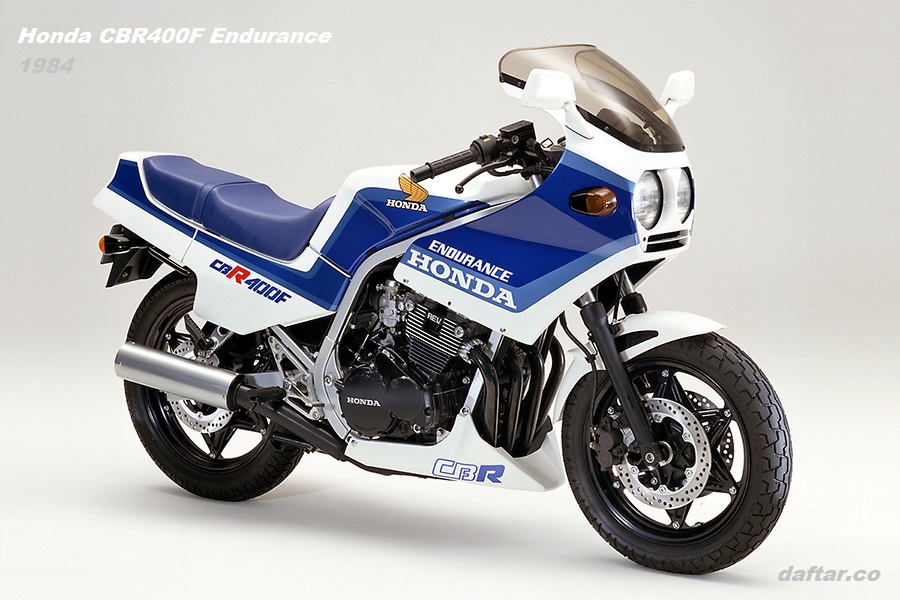

| 1984 Honda CBR400F Endurance photo. |
This 1984 CBR400F Endurance is based on the CBR400F developed by introducing various know-how gained in various racing activities, such as half fairing to reduce rider fatigue, under cowl, and two-lamp halogen headlight (35W)./35W x 2) is newly equipped to make it a sport bike with a fearless image.
The engine is equipped with an air-cooled, 4-cycle, DOHC, 16-valve, in-line 4-cylinder engine that employs a rotation speed response type valve suspension mechanism (REV) that changes the number of operating valves according to the rotation speed. Furthermore, by adopting a resonance chamber with improved intake efficiency and an exhaust system with excellent exhaust efficiency, a high output of 58PS/12,300rpm and an excellent fuel of 40km per liter (60km/h constant running test value) Realizes economic efficiency.
The frame adopts a double cradle type of square cross-section pipe that pursues light weight and high rigidity by computer analysis. The suspension uses an air assist type for the front wheels and a prolink type for the rear wheels, and exhibits excellent road surface followability in combination with the brake torque response type anti-dive mechanism (TRAC) that alleviates changes in vehicle body posture during braking.
The brakes are equipped with dual piston caliper-equipped flat discs on the front wheels as double and on the rear wheels as single, making it a full-featured equipment suitable for high-performance road sports bikes.
As a result, Honda’s 400cc class sports bikes have become more complete with 13 models and 17 types.
Honda CBR400F Endurance Specifications
| Model | NC17 |
| Overall length (m) | 2.035 |
| Overall width (m) | 0.720 |
| Overall height (m) | 1.200 |
| Wheelbase (m) | 1.390 |
| Minimum ground clearance (m) | 0.140 |
| Seat height (m) | 0.780 |
| Vehicle weight (kg) | 200 |
| Dry weight (kg) | 183 |
| Riding capacity (person) | 2 |
| Fuel economy (km/L) | 40 (60km/h constant-land driving test value) |
| Climbing ability (tanθ) | 0.46 (about 25 degrees) |
| Minimum turning radius (m) | 2.6 |
| Engine model | NC07E/Air-cooled 4-cycle DOHC 4-valve 4-cylinder |
| Total displacement (cm3) | 399 |
| Inner diameter x stroke (mm) | 55.0 × 42.0 |
| Compression ratio | 9.6 |
| Maximum output (PS/rpm) | 58/12,300 |
| Maximum torque (kg-m/rpm) | 3.6/11,000 |
| Carburetor model | VE53 |
| Starting method | Self |
| Ignition method | Full transistor non-contact type |
| Lubrication method | Pumping splash combination type |
| Lubricating oil capacity (L) | 3.0 |
| Fuel tank capacity (L) | 18 |
| Clutch type | Wet multi-plate coil spring |
| Transmission type | Always meshing 6-stage return |
| Gear ratio | 1st speed 2.769 ; 2nd speed 1.850; 3rd speed 1.478; 4th speed 1.240; 5th speed 1.074; 6th speed 0.965 |
| Reduction ratio 1st/2nd | 2.565/3.142 |
| Caster (degree) | 27°00′ |
| Trail (mm) | 98 |
| Tire size | (front) 100/90-16 54H (rear) 110/90-18 61H |
| Brake model | (Front) Hydraulic double disc (Rear) Hydraulic disc |
| Suspension method | (Front) Telescopic (Rear) Swing arm (Prolink) Combined use of cylindrical air springs for both front and rear |
| Frame format | Double cradle |
Honda CBR400F Endurance Price
Sales plan (domestic/annual) : CBR400F series 30,000 units (planned)
Japan standard cash price of Honda CBR400F Endurance : 598,000 yen. (Hokkaido/Okinawa prices are 9,000 yen higher. Others, some remote islands are excluded). Check also the predessor Honda CBR400F 1983.
