Super Sports Bike Honda CBR600RR BC-PC37 2005/2006 Photos & Specs
The super sports bike “CBR600RR”, which incorporates the advanced technology of the “RC211V” * 1, will be fully remodeled and will be released on January 27, 2005 (Thursday).
 |

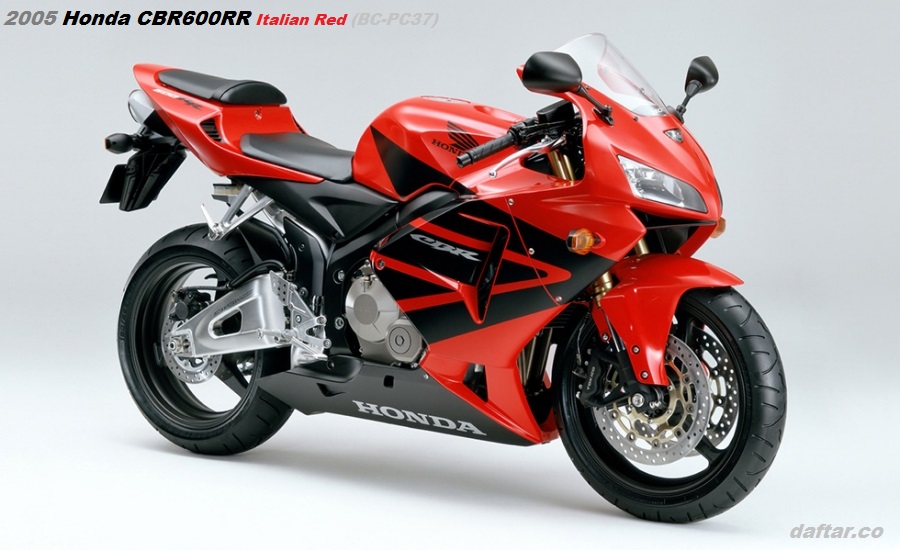

| Photo of Honda CBR600RR (BC-PC37). Color : Italian Red. Model Year: 2005-01-27. |
This time, we have achieved a significant weight reduction of 5.6 kg centered on the main frame. In addition, by concentrating the masses that bring heavy objects closer to the center of gravity, the maneuverability is greatly improved and high maneuvering stability is achieved.
For the engine, the shape of the inlet port and the length of the muffler and exhaust pipe have been reviewed to achieve a linear throttle response in the medium speed range. In addition, the setting of the injector injection particle size has been changed to improve combustion efficiency. Furthermore, along with the change in the shape of the inlet port, the conventional PGM-DSFI setting has been reviewed to enable stable and highly efficient combustion in a wide range of revolutions from low to high revolutions, achieving optimum output characteristics.
The suspension has increased rigidity by adopting an inverted front fork, and combined with the weight reduction of the popular rear unit Prolink suspension, the maneuverability has been improved. The front brake uses the highly rigid radial mount caliper used in the “RC211V” and “CBR1000RR”. It enables effective braking control with excellent controllability.
The styling incorporates the latest “RC211V” design, and the screen and air duct shape have been changed. The tail cowl has been changed to a slimmer style with minimal air resistance.
Since its launch in July 2003, this “CBR600RR” has realized comfortable riding in urban areas with stable driving and high potential. In addition, it has been well received as a fully equipped model such as H/I/S/S and a multifunctional instrument panel.
* A competition-only machine equipped with a 990cc V5 engine, which Honda introduced in 2002 at the FIM Road Racing World Championship (MotoGP class), which is the world’s highest peak in motorcycle racing.
* Honda Ignition Security System
2005 Honda CBR600RR BC-PC37 Price
Planned sales volume (domestic/annual) : 1,300 units
Manufacturer’s suggested retail price : 966,000 yen (main unit price excluding consumption tax 920,000 yen)
Main features of CBR600RR 2005-2006
Achieves high maneuverability and steering stability through thorough weight reduction
The “CBR600RR” has achieved a thorough weight reduction centered on the frame. By improving the fine die-casting manufacturing technology of the hollow structure of the main frame, it is possible to further thin the frame while ensuring rigidity. In addition, about 65% of the parts such as the muffler manufacturing method, muffler protector structure, and swing arm structure have been reviewed, achieving a significant weight reduction of 5.6 kg compared to the conventional model. Furthermore, by reducing the weight of the seat rails, we aim to further centralize the mass, and have achieved significant improvement in exercise performance and light handling.
Inverted front fork and radial mount caliper
The suspension uses a 41mm inverted front fork. The rigidity around the front has been increased to achieve accurate control and reliable operability. In addition, the radial mount caliper used in the “RC211V” and “CBR1000RR” is used for the brakes. It increases the rigidity of the caliper during braking, enables uniform pressure distribution over the entire brake pad, and realizes effective braking control.
Styling with an emphasis on functionality
The “CBR600RR”, which has introduced the advanced technology of the “RC211V” that continues to evolve day by day, incorporates the design as a functional beauty of the “RC211V” in terms of styling.
The front cowl has a sharp screen shape similar to the latest “RC211V”. In addition, the design of the air induct has been changed to further reduce air resistance. In addition, the tail cowl design has been changed to a slim shape.
As with the conventional model, the muffler adopts a center-up exhaust system aimed at improving aerodynamic characteristics and concentrating mass, and the exhaust port has been changed from a circular shape to an elliptical shape, and the details have been elaborated.
Honda CBR600RR Body color Options
 |

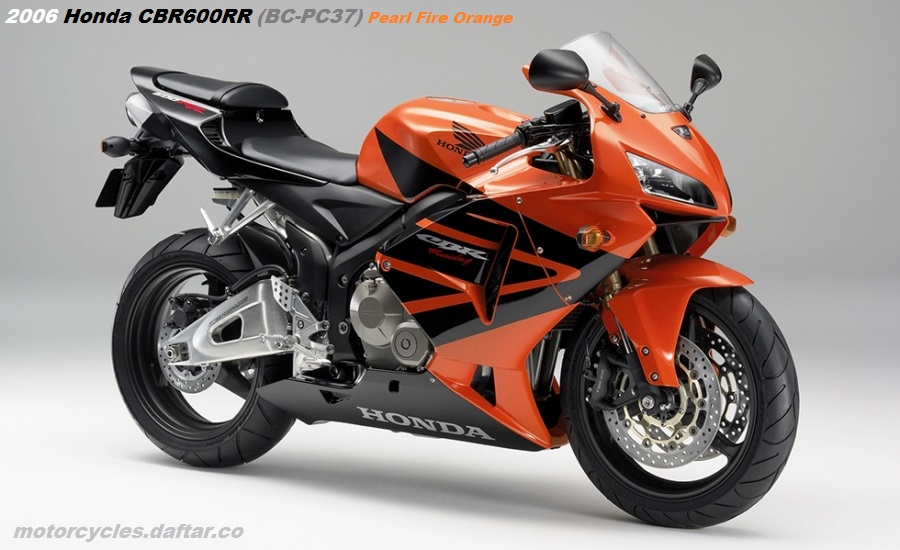

| Honda CBR600RR wallpaper. New Color: Pearl Fire Orange. Release date : 2006-01-20 |
Color choices: Pearl Fire Orange, Italian Red, Graphite Black. Check also: Honda CBR600RR Movistar Special Edition.
For the body color of “CBR600RR”, in addition to the vivid Italian red, the calm force silver metallic with black stripes on the side of the body, and the fearless solid color black are newly adopted. It is possible to select according to your taste. This time CBR600RR has also added a bright new color “Pearl Fire Orange” . Previous red and black have changed stripes, and a total of 3 colors are set.
In addition to the current Italian red, the body color is set to three colors: fearless black and calm force silver metallic.
Easy-to-use equipment and option settings
- A multifunctional and highly visible compound electronically controlled instrument panel with an analog tachometer and various digital display meters is standard equipment.
- Equipped with a hazard lamp that is convenient when parking and stopping.
- Equipped with H, I, S, S (Honda Ignition Security System), which is effective in deterring theft, as standard equipment.
- The remote control immobilizer alarm function that detects vibration and emits a sharp warning sound is set as an option. (Made by Honda Access Co., Ltd.)
- Cowl screen, instrument panel, top bridge cover, and single seat cowl that realize styling according to the user’s preference are available as options. (Made by Honda Access Co., Ltd.)
- A U-shaped lock that can be stored in the utility space under the pillion seat is available as an option. (Made by Honda Access Co., Ltd.)
2005 Honda CBR600RR BC-PC37 Specs
Main specifications
| Common name | CBR600RR | ||
| Vehicle name/model | Honda BC-PC37 | ||
| Overall length x Overall width x Overall height (m) | 2.010 x 0.690 x 1.115 | ||
| Wheelbase (m) | 1.395 | ||
| Minimum ground clearance (m) | 0.130 | ||
| Seat height (m) | 0.820 | ||
| Vehicle weight (kg) | 194 | ||
| Dry weight (kg) | 166 | ||
| Riding capacity (person) | 2 | ||
| Fuel consumption rate (km/L) | 29.0 (60km/h constant driving test value) | ||
| Minimum turning radius (m) | 3.2 | ||
| Engine model/type | PC37E/water-cooled 4-stroke DOHC 4-cylinder | ||
| Total displacement (cm3) | 599 | ||
| Inner diameter x stroke (mm) | 67.0 × 42.5 | ||
| compression ratio | 12.0 | ||
| Maximum output (kW [PS]/rpm) | 51 [69]/11,500 | ||
| Maximum torque (N ・ m [kg ・ m]/rpm) | 51 [5.2]/7,500 | ||
| Fuel supply device type | Electronically controlled fuel injection type (PGM-DSFI) | ||
| Starting method | Self-type | ||
| Ignition system type | Full transistor battery ignition | ||
| Lubrication method | Pumping splash combination type | ||
| Fuel tank capacity (L) | 18 | ||
| Clutch type | Wet multi-plate coil spring | ||
| Transmission type | Always meshing 6-speed return | ||
| Gear ratio | 1 Speed | 2.666 | |
| 2 Speed | 1.937 | ||
| 3 speed | 1.611 | ||
| 4 speed | 1.409 | ||
| 5 speed | 1.260 | ||
| 6 speed | 1.166 | ||
| Reduction ratio (1st/2nd) | 2.111/2.562 | ||
| Caster (degree)/Trail (mm) | 24 ° 00´/95 | ||
| Tire size | Front | 120/70ZR17 M/C (58W) | |
| Rear | 180/55ZR17 M/C (73W) | ||
| Brake type | Front | Hydraulic double disc | |
| Rear | Hydraulic disc | ||
| Suspended method | Previous | Telescopic method | |
| Rear | Swing arm type | ||
| frame format | diamond | ||
