Photos Gallery of 2013 New Honda CBR600RR (EBL-PC40) Special Repsol MotoGP Livery Limited Edition
New CBR600RR will be remodeled and a special color model “CBR600RR Special Edition with Repsol Honda MotoGP Team Livery” will be released on March 22 (Friday) 2013 for a limited time.
 |

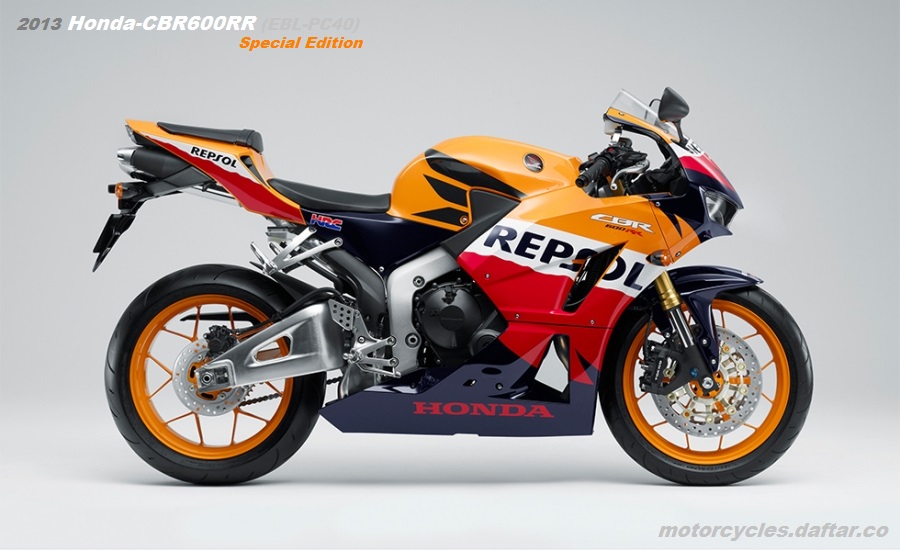

| New Honda CBR600RR (EBL-PC40) Special Edition. Color: Repsol Honda Team MotoGP Livery Limited Edition. Production periode: 2013-2019 |
CBR600RR realizes better aerodynamic characteristics and sharp design by adopting a newly designed full cowl. Similar to the “CBR1000RR”, the front suspension has a new big piston front fork that improves stability and ride quality during braking. In addition, 12-spoke aluminum cast wheels are used for the front and rear wheels, making it easy to handle and enjoy exhilarating driving in a wide range of situations from city driving to sports driving.
The CBR600RR Special Edition painted with the Livery of Repsol Honda Team, which participates in the MotoGP class, which is the highest peak in the road racing world championship series, and has a high racing image. A Repsol Honda Team sponsor sticker is included with the vehicle body.
For both CBR600RR and CBR600RR Special Edition, ABS specification vehicles equipped with the electronically controlled “combined ABS” that was adopted for the first time in the world * 2 for super sports models are also available.
Honda CBR600RR Specs
Here the complete technical specs of 2016 Honda CBR600RR:
DIMENSIONS
Rake : 23.5° (Caster Angle)
Trail : 97.7mm (3.9 inches)
Wheelbase : 53.9 inches
Seat Height : 32.3 inches
Curb Weight : 410 pounds (Includes all standard equipment, required fluids and a full tank of fuel—ready to ride)
Fuel Capacity : 4.8 gallons
Miles Per Gallon : TBD*
ENGINE
Engine Type : 599cc Liquid-Cooled Inline Four-Cylinder
Bore And Stroke : 67mm x 42.5mm
Induction : Dual Stage Fuel Injection (DSFI) with 40mm throttle bodies, Denso 12-hole injectors
Ignition : Computer-controlled digital transistorized with 3-D mapping
Compression Ratio : 12.2:1
Valve Train : DOHC; four valves per cylinder
DRIVE TRAIN
Transmission : Close-ratio six-speed
Final Drive : #525 O-ring chain
CHASSIS / SUSPENSION / BRAKES
Front Suspension : 41mm inverted Big Piston Fork with spring preload, rebound and compression damping adjustability; TBD inches travel
Rear Suspension : Unit Pro-Link® HMAS™ single shock with spring preload, rebound and compression damping adjustability; 5.1 inches travel
Front Brake : Dual radial-mounted four-piston calipers with full-floating 310mm discs. Hydraulic double disc [electronically controlled “combined ABS”]
Rear Brake : Single-caliper 220mm disc [electronically controlled “combined ABS”].
Front Tire : 120/70ZR-17 radial
Rear Tire : 180/55ZR-17 radial
OTHER
Model Id : CBR600RR
Emissions : Meets current EPA standards. California version meets current CARB standards and may differ slightly due to emissions equipment.
Available Colors : Black/White
Honda CBR600RR Features
- Honda Electronic Steering Damper (HESD): It detects vehicle speed, and adjusts damping proportionally. That helps maintain low-speed maneuver ability while providing excellent, predictable high-speed handling
- Dual-Stage Fuel Injection: Two sets of injectors per cylinder ensure both low- and high-rpm performance. You get near-instantaneous high-rpm response, along with great low-rpm metering and clean running.
- Honda Multi-Action System (HMAS) Inverted Fork: The HMAS cartridge fork features an exclusive internal piston construction. The innovative design employs smaller-diameter pistons to keep oil velocity high for improved damping characteristics and an expanded range of adjustability. The result: you get more precise suspension performance, especially over smaller surface irregularities.
- Radial Mounted Front-Brake Calipers: The CBR600RR uses radial-mounted monoblock front-brake calipers. This construction makes the caliper stiffer, and that means you get better brake feel for more linear, powerful stopping. Each caliper also uses four chromium-plated aluminum pistons for smooth, friction-free operation.
- 12-Spoke Wheels: With their consistent rigidity and balance, these sharp-looking 12-spoke cast aluminum wheels work with the fork and enhance suspension feedback to deliver real handling improvements.
- Dual-Stage Ram Air: A nose-mounted, two-stage ram air system provides a high volume of cool air to the air box for linear power delivery and superb engine performance.
- Unit Pro-Link® Suspension: By eliminating the frame-mounted top shock mount; Unit Pro-Link® isolates the chassis from bumps, resulting in more precise handling and better traction. Developed on Honda’s championship-winning MotoGP bikes, it’s a perfect example of the CBR’s superior engineering
- Electronic Combined Anti-Lock Braking (C-ABS): The available electronically controlled C-ABS distributes brake force over both wheels, helping to maintain braking confidence in less-than-ideal conditions. The system electronically measures rider input on the brake lever and pedal, and applies only the front or rear brake in some cases or combines both brakes in other situations. Type setting of electronically controlled “combined ABS”.
The electronically controlled “combined ABS” developed by Honda for the first time in the world for super sports models is set as a type. This braking system provides a sense of security when braking by electronically controlling both the combined brake system (front / rear wheel interlocking brake system) and ABS (anti-lock braking system) and controlling them more precisely. It is greatly enhanced. - Centrally Located Fuel Tank: The CBR600RR’s 4.8-gallon fuel tank is positioned in the center of the chassis and low in the frame. This allows for a more compact design, but even more important helps centralize the bike’s mass. Increased mass centralization means the CBR is more responsive to rider input, especially when leaning the bike into a turn or standing it up at the exit.
- Sharp styling with a new shape cowl.
The styling emphasizes a sense of speed and dynamism based on the “mass concentration form”. We are pouring in weight reduction technology and air management technology that we have fed back from the MotoGP race site. The front cowl has a shape that pursues reduced air resistance and high cooling efficiency, and is designed to prevent the heat of the engine from getting caught in the rider, improving comfort. The tail cowl has a cowl duct of the same type as the MotoGP machine “RC213V” to express a lacy image. In addition, the LED tail lamp and center-up muffler provide a fearless rear view. - Undercarriage that balances light driving and ride quality.
A big piston front fork is newly adopted for the front suspension. This system increases the pressure receiving area of fork oil by increasing the diameter of the piston and generates damping force at low internal pressure, so it realizes smoothness at the beginning of the stroke and operability with little play, and transient characteristics of damping force. Is improving. In addition, it achieves a high level of stability and improved ride quality during full braking. In addition, the unit prolink suspension inherited from the past is adopted as the rear suspension. - High-performance engine that is powerful and smooth up to high rpm.
Equipped with a water-cooled, 4-stroke, DOHC, 4-valve, in-line 4-cylinder engine inherited from the conventional model. This time, in order to improve the torque characteristics in the high rpm range, we are reviewing the shape of the ram duct of the air intake port. - The CBR600RR Special Edition (including ABS specification motorbike) uses the Vibrant Orange, which is the coloring of the RC213V (2012 season car) of the Honda Works Team Repsol Honda Team, which is active in MotoGP, and is a special edition full of racing mood.
2013 New Honda CBR600RR (EBL-PC40) Price
Manufacturer’s suggested retail price in Japan 2013:
- New Honda CBR600RR Special Edition non-ABS : 1,192,800 yen (main unit price excluding consumption tax 1,136,000 yen)
- New Honda CBR600RR ABS Repsol MotoGP Limited Edition : 1,360,800 yen (main unit price excluding consumption tax 1,296,000 yen)
- New Honda CBR600RR Basic non-ABS : 1,098,300 yen (main unit price excluding consumption tax 1,046,000 yen)
- 2013 Honda CBR600RR Basic ABS Ross White : 1,297,800 yen (main unit price excluding consumption tax 1,236,000 yen)
Genuine 2016 CBR600RR Accessories Pricing:
- Racing Cover 08P34-MFJ-100 : $132.95
- Racing Sticker (Black) 08F71-MJC-A00ZD : $73.95
- 17inch Wheel Stripe Sticker 0SP01-MFJ-140 : $29.95
- Carbon Fiber Exhaust Protector 08P73-MJC-A00 : $186.95
- Carbon Fiber Rear Fender 08P72-MJC-A00 : $279.95
- Carbon Fiber Fuel Lid Cover 08P61-MFJ-100B : $39.95
- Carbon Fiber Tank Pad 08P61-MFJ-100A : $34.95
- Color-Matched Seat Cowl (Red) 08F72-MJC-A00ZC : $169.95
- Color-Matched Seat Cowl (Black) 08F72-MJC-A00ZD : $169.95
- Cycle Cover 0SP34-MFL-301 : $109.95
- Racing Sticker (Red) 08F71-MJC-A00ZE : $73.95
- Sportscreen 08R71-MJC-A00 : $98.95
