1987 Honda CBR750 Super Aero (RC27) Overview, Specs and Photos
 |

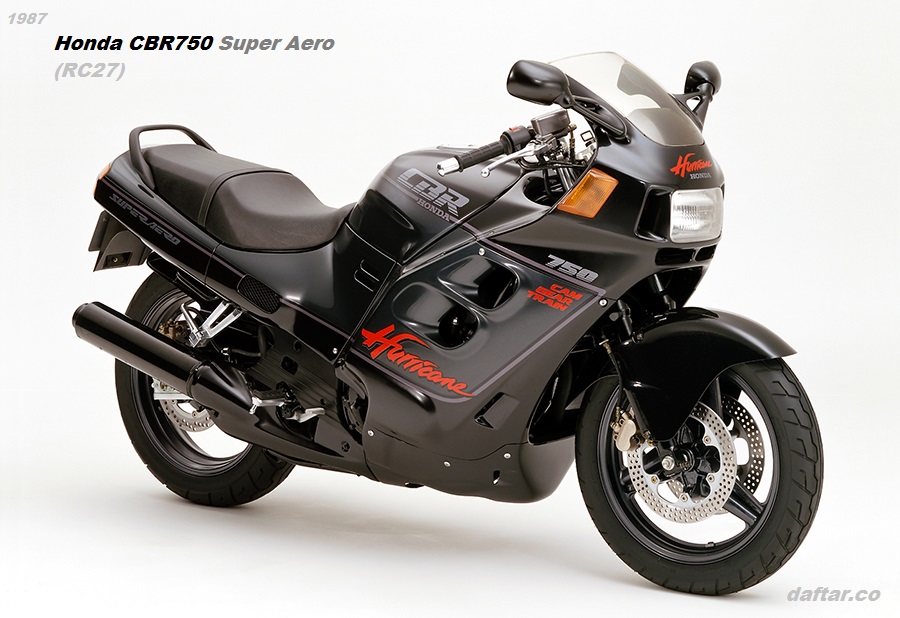

| Photo of 1987 Honda CBR750 Super Aero – Super Sports Big Motorbike. |
Honda released “CBR750 Super Aero” on February 10th 1987, a super sports bike that equipped with a newly designed water-cooled 4-stroke DOHC 4-cylinder 750cc engine and adopting a fully covered design with excellent aerodynamic characteristics.
1987 Honda CBR750 Super Aero (RC27) Review
This Honda CBR750 Super Aero is equipped with a water-cooled 4-stroke DOHC 16-valve in-line 4-cylinder engine that uses a cam gear train mechanism. Uses straight ports and slant carburetors with improved intake efficiency, and exhaust pipes with 4-2-1-2 piping that produce high exhaust efficiency. As a result, from the low rpm range to the high rpm range, the overwhelming strength unique to the 750cc class (maximum output 77PS/9,500rpm, maximum torque 7.0kg-m/6,500rpm) is demonstrated.
The body design is a 750cc class while improving aerodynamic characteristics by adopting a fully covered design and aero fenders (front and rear) with a twin tube diamond type frame that realizes light weight, high rigidity and a low center of gravity as a skeleton. The style is suitable for pursuit.
1987 Honda CBR750 SuperAero Price
Sales plan (domestic/annual) : 8,000 units
National standard cash price at that time (Year 1987): 789,000 yen. (Excluding Hokkaido/Okinawa and some other remote islands.)
1987 Honda CBR750 Super Aero Features
The suspension is a large diameter (φ39) air assist suspension equipped with TRAC (anti-dive mechanism) on the front wheels. The rear wheels use a de-carvone rear damper with a 2-way valve (with a hydraulic preload adjustment mechanism) and a pro-link suspension with an aluminum swing arm. Disc brakes (double front wheels) are used for both front and rear wheels. In addition, it is equipped with flat tires, lightweight and highly rigid S-shaped cross-section spokes, and aluminum wheels with wide rims, making it a fulfilling suspension suitable for a powerful engine.
In this way, the Honda CBR750 Super Aero is suitable for being called a super sports bike in all aspects such as engine, frame, suspension and style.
Other main features :
- Equipped with a meter panel with a fuel meter.
- Adopts a buffed handle and top bridge.
- Aluminum step and pillion step holder are used.
- Adopts duralumin forged change pedal and brake pedal.
- Uses halogen headlights that use lightweight resin lenses.
- Adopts a new sintered brake pad.
- Equipped with a grab rail that is convenient for two people.
- Adopts an easy-to-use hinged air plane type fuel cap.
1987 Honda CBR750 Super Aero (RC27) Specifications
Main specifications
| Car name | Honda CBR750 Super Aero |
| Model | RC27 |
| Overall length (m) | 2.170 |
| Overall width (m) | 0.720 |
| Overall height (m) | 1.185 |
| Wheelbase (m) | 1.480 |
| Minimum ground clearance (m) | 0.135 |
| Seat height (m) | 0.770 |
| Vehicle weight (kg) | 224 |
| Dry weight (kg) | 199 |
| Riding capacity (person) | 2 |
| Fuel efficiency (km/L) | 38.1 (60km/h constant-land driving test value) |
| Engine model | RC27E/Water-cooled 4-cycle DOHC 4-valve in-line 4-cylinder |
| Total displacement (cm3) | 748 |
| Inner diameter x stroke (mm) | 70.0 x 48.6 |
| Compression ratio | 10.5 |
| Maximum output (PS/rpm) | 77/9,500 |
| Maximum torque (kg-m/rpm) | 7.0/6,500 |
| Starting method | Self-type |
| Ignition method | Full transistor type |
| Lubricating oil capacity (L) | 4.3 |
| Fuel tank capacity (L) | 21 |
| Transmission type | Always meshing 6-speed return |
| Caster (degree) | 26° 00′ |
| Trail (mm) | 104 |
| Tire size before | 110/80-17 57H |
| Rear tire size | 140/70-18 66H |
| Brake type front | Hydraulic double disc |
| Brake type Rear | Hydraulic disc |
| Suspension system front | Telescopic (with cylindrical air spring) |
| Suspended system Rear | Swing arm (Prolink) |
| Frame format | Diamond |
