Super sports bike Honda CBR954RR Fireblade (BC-SC50) 2002 – Pictures, Motorcycle Photos, Specifications, Parts and Price
Honda CBR954RR Fireblade is the sixth and final generation of the Honda CBR900RR series before being replaced by the CBR1000RR series. It was introduced in North America and Japan in 2002. The power is up to 154 hp and the torque is 91.1 Nm.
 |

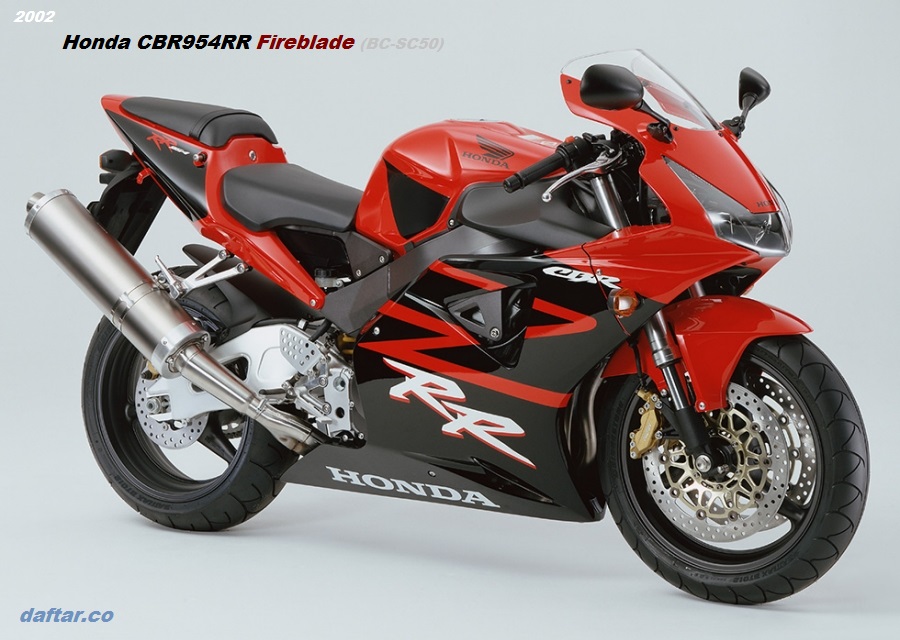

| Photo of Honda CBR954RR Fireblade (BC-SC50). Color: Winning Red. Release date: March 1st, 2002 |
For the size of the 900cc motorbike, the weight is fairly light, only 168kg. In fact, it is only 3 kg different from the Honda CBR250RR which weighs 165 kg. A large displacement super sports bike with a 1000cc class engine mounted on a compact and lightweight body comparable to 600cc, which brings together Honda’s advanced technology that allows you to fully enjoy the enjoyment of maneuvering.
Since its launch in 1992 as the “FireBlade” in Europe and the “CBR900RR” in North America, this CBR954RR has renewed the supersports category of the large displacement class and has received high praise. Taking the opportunity of the 6th generation model change, it will start selling in Japan for the first time.
The engine is equipped with a 954 cm3, water-cooled DOHC in-line 4-cylinder engine with an increased displacement. High-precision PGM-FI (electronically controlled fuel injection system) and H-VIX (Honda Variable Intake and Exhaust) control system that optimally controls the flow rate of intake and exhaust by electronic control are adopted. The exhaust system uses an ultra-lightweight and high-strength titanium alloy.
The frame uses the racing technology of the Works Racer NSR500 to realize the enjoyment of running a sports bike at a high level.
This time, as a domestic specification, a silent cross chain that reduces running noise is adopted.
The anti-theft system is fully equipped with Honda’s original HISS (Honda Ignition Security System) also used for European specifications.
The color design has a bold touch wing mark and RR mark on the entire body, giving it a speedy styling. The North American and European specifications have the same design, and have a universal image.
Two body colors are available: Winning Red and Accurate Silver Metallic.
2002 Honda CBR954RR Fireblade Price
Planned sales volume (domestic/annual) : 1,500 units
Manufacturer’s suggested retail price : 1,050,000 yen
(An example of the suggested retail price in the region: Okinawa is 10,000 yen higher, excluding some other regions.) (Reference price. Consumption tax not included.)
Main features of Honda CBR954RR Fireblade
Equipped with a lightweight, compact and powerful engine with increased displacement.
The engine is equipped with a water-cooled DOHC in-line 4-cylinder 954 cm3. In addition to its compact design, it combines a number of high-efficiency technologies such as lightweight forged aluminum pistons, hollow camshafts, crankshafts and crankcases that suppress friction loss, and has a powerful power feel and agility in the low to high rev range. Achieves a good response.
In addition, the engine is designed to be compact and lightweight in every detail, including a water-cooled oil cooler that is lightweight and has a high cooling effect, a starter motor that uses a high-efficiency magnet, and a compact size ACG.
Achieves agile response by adopting PGM-FI (electronically controlled fuel injection system)
The fuel injection system uses PGM-FI, which is a compact integration of an ECU (electronic control unit) and a digital electronic ignition mechanism. By precisely controlling the fuel injection amount, agile response and smooth output characteristics are realized. In addition, PGM-FI, which has excellent control of the ideal air-fuel ratio, and a secondary air injection device (air injection system) have realized excellent clean exhaust gas.
Frame where racing technology is alive
The frame uses a lightweight and highly rigid aluminum twin tube frame. Riding performance that enables not only city riding and long-distance driving but also circuit driving by making the best use of the features of the original frame configuration that leads to high-speed stability and light and sharp handling in the low and medium speed range. And, both light and high-quality handling are achieved.
Inheriting the racing technology of the Works Racer NSR500, the lightweight and highly rigid aluminum swing arm maximizes the characteristics of the Prolink suspension and achieves a high level of exercise performance such as excellent road followability.
The suspension uses a φ43mm cartridge type inverted fork on the front and a Prolink on the rear.
Both adopt H.M.A.S (Honda Multi-Action System) and realize supple operability and road surface followability at a high level. It also has a fully adjustable mechanism that can steplessly adjust the preload and the damping force on the extension/compression side in both front and rear. In addition, the unsprung weight has been thoroughly reduced by making the spring a lightweight type in line with the adoption of lightweight wheels, achieving quick and stable handling and high controllability.
The brakes are equipped with a front disc brake that uses a 4-piston caliper that is excellent in braking with a sintered metal pad, and a rear disc brake that uses a single-piston caliper.
The dry weight is 170 kg, which is the highest level in its class.
More light and speedy styling
The body design that pursues total controllability has a fearless shape by slanting the front cowl, and the tight side cowl has a lightweight one-piece structure on both the left and right sides. The slim and lightweight rear cowl is a fully covered type that covers the underside of the seat rails.
In addition, the fuel tank that guides the optimum riding position is downsized and has a low center of gravity, ensuring a capacity of 18L.
Effective equipment to deter theft
HISS (Honda Ignition Security System) is adopted as the theft deterrent system. The anti-theft effect is improved by making it impossible to start the engine with a key other than the genuine key and blinking the indicator lamp for 24 hours by operating the button.
In addition, it is compatible with the vehicle location search service system “Kokosecom,” which is being developed in collaboration with SECOM Co., Ltd., and secures a space for mounting units and in-vehicle chargers, making it a “Kokosecom Honda recommended model”.
Other full equipment of Honda CBR954RR Fireblade
- Adopts a 3-lamp multi-reflector headlight that demonstrates excellent light distribution performance. It is designed to tighten the front cowl.
- Adopts an LED type tail lamp designed to be divided into upper and lower parts with excellent visibility and a sense of speed.
- The lightweight and compact instrument panel uses a multifunctional digital panel with an analog large-diameter tachometer on the right, a speedometer, odometer, water temperature gauge, clock, and a new fuel consumption rate display on the left.
- Pillion seat with flip-up mechanism. U-lock etc. can be stored in the storage space under the pillion seat.
2002 Honda CBR954RR Specifications
Below the standard specs of Honda CBR954RR 2002:
| Common name | CBR954RR | |
| Vehicle name/model | Honda BC-SC50 | |
| Overall length x Width x Height (m) | 2.025 x 0.680 x 1.135 | |
| Wheelbase (m) | 1.405 | |
| Minimum ground clearance (m) | 0.130 | |
| Seat height (m) | 0.820 | |
| Vehicle weight (kg) | 195 | |
| Dry weight (kg) | 170 | |
| Riding capacity (persons) | 2 | |
| Fuel consumption rate (km/L) | 23.0 (60km/h constant-land driving test value) | |
| Minimum turning radius (m) | 3.3 | |
| Engine model/type | SC50E/Water-cooled 4-stroke DOHC 4-cylinder | |
| Total displacement (cm3) | 954 | |
| Inner diameter x stroke (mm) | 75.0 x 54.0 | |
| compression ratio | 11.5 | |
| Maximum output (kW [PS]/rpm) | 67 [91]/10,500 | |
| Maximum torque (N ・ m [kg ・ m]/rpm) | 87 [8.9]/5,500 | |
| Fuel supply device type | Electronically controlled fuel injection type (PGM-FI) | |
| Starting method | Self-type | |
| Ignition system type | Full transistor battery ignition | |
| Lubrication method | Pumping splash combination type | |
| Fuel tank capacity (L) | 18 | |
| Clutch type | Wet multi-plate coil spring | |
| Transmission type | Always meshing 6-speed return | |
| Gear ratio | 1st gear | 2.692 |
| 2nd speed | 1.933 | |
| 3rd speed | 1.600 | |
| 4th speed | 1.400 | |
| 5th speed | 1.285 | |
| 6th speed | 1.190 | |
| Reduction ratio (1st/2nd) | 1.520/2.562 | |
| Caster (degree)/Trail (mm) | 23° 45´/97 | |
| Tire size | Front | 120/70ZR17 M/C (58W) |
| Rear | 190/50ZR17 M/C (73W) | |
| Brake type | Front | Hydraulic double disc |
| Rear | Hydraulic disc | |
| Suspension method | Previous | Telescopic method |
| Rear | Swing arm type | |
| Frame format | diamond | |
Check also it’s little brother Honda CBR600F4i 2001 that has similar design but smaller engine.
