2012-2016 Honda CRF250L (JBK-MD38) Overview, Specs, Features & Trials Motorcycle Photos Gallery
Honda CRF250L is an on/off-road model or dual-sport motorcycle, part of the CRF series equipped with a 4-stroke, DOHC, 250cc engine, enjoyable for light driving in a wide range of usage environments from urban areas to off-road. Released on May 14th (Monday) 2012.
 |

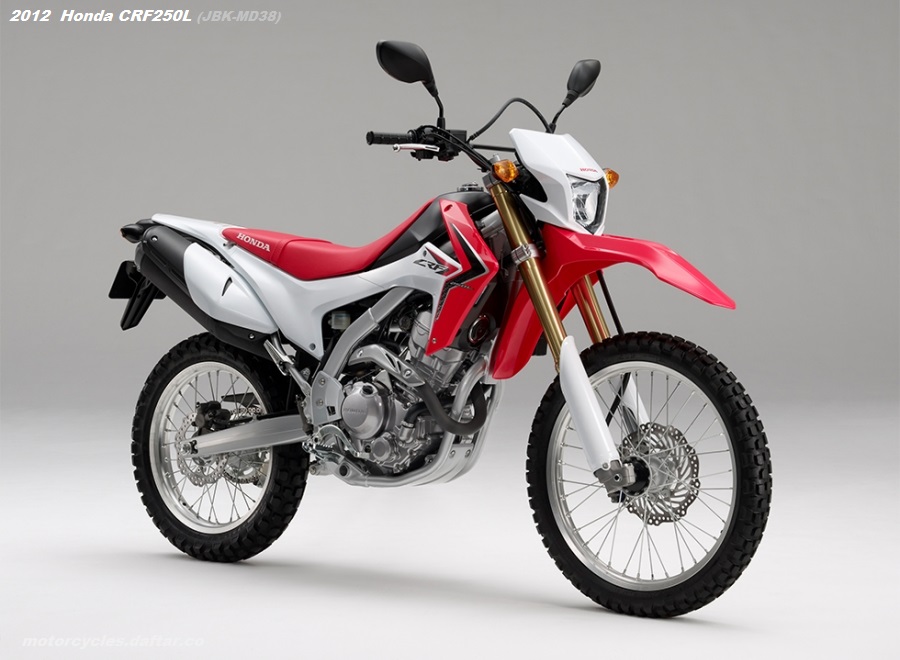

| 2012 Honda CRF250L (JBK-MD38) photo. Body Colour: extreme red. |
The keywords for the development were “On (daily) convenience, Off (weekend) fun, just the right companion New On & Off Gear”, targeting a wide range of riders from beginners to veterans, total balance and handling stability. Appeared as a pursued model. While it has an aggressive style inherited from the racer CRF, it is attractive because it is obedient and easy to handle.
 |

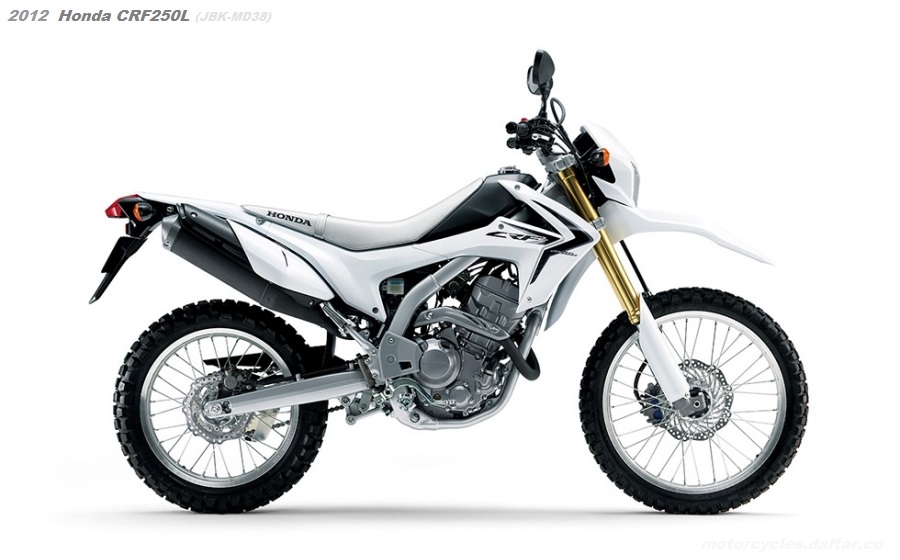

| Image of Honda CRF250L 2012. Color: Ross White. |
The engine adopts a water-cooled, 4-stroke, DOHC, 250cc single cylinder with powerful output characteristics in the low and medium speed range. Thanks to the use of a wide range of low-friction technologies such as offset cylinders, it achieves excellent fuel efficiency of 44.3km/L (60km/h level driving test value).
The newly designed frame uses a steel twin-tube type that achieves both lightness and stability, and enables a supple ride. In addition, the front suspension uses an inverted type with a cushion stroke of 250mm, and the rear uses a pro-link suspension with an axle travel of 240mm, achieving agility and excellent running performance from urban areas to off-road.
While inheriting the CRF series of motocross machines, the styling has been further refined to be sharper and more aggressive, making it a design that asserts Honda’s identity suitable for the new era of CRF. Two color variations are available: extreme red with an aggressive image and loss white with a cool image.
Honda CRF250L Price in 2012
Planned sales volume (Japan domestic/annual) : 7,000 units.
Manufacturer’s suggested retail price : 449,400 yen (428,000 yen without consumption tax).
Prices (including recycling costs) do not include insurance premiums, taxes (excluding consumption tax), registration fees, etc.
 |

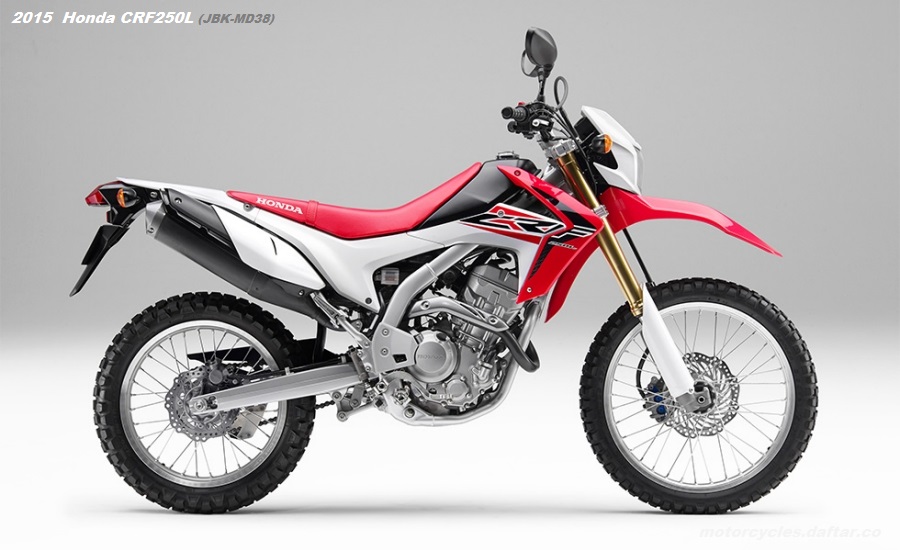

| 2015 Honda CRF250L photo. |
Main Features of Honda CRF250L
Engine
Aiming for powerful output characteristics that are easy to handle from on-road to off-road driving. While maintaining powerful torque characteristics from the low rev range, it also has output characteristics that extend to high revs typical of a water-cooled, 4-stroke, DOHC engine. In addition to the adoption of a wide range of low-friction technologies such as offset cylinders and roller rocker arms, the electronically controlled fuel injection system (PGM-FI * ) and O2 The synergistic effect of the sensors installed and the catalyst device (catalyzer) installed in the muffler achieves high environmental performance and excellent fuel efficiency of 44.3km/L (60km/h level driving test value). I’m here.
- PGM-FI (Programmed Fuel Injection System) is a registered trademark of Honda
Body/Suspension
The newly designed frame adopts a steel twin tube type to achieve a supple ride while ensuring light handling and stability. The main pipe has an elliptical cross section, contributing to high rigidity and a slim body. The front suspension employs an inverted separate function front fork with an inner tube diameter of 43mm and a cushion stroke of 250mm. By ensuring light weight and high rigidity, it exhibits excellent operability and high steering stability. The rear uses a pro-link suspension with axle travel of 240mm, and an aluminum casting integrated swingarm that ensures high strength and an appropriate rigidity balance, demonstrating agility and high road-following performance from city streets to off-road.
Styling
While inheriting the styling characteristic and basic concept of the CRF series of motocross machines, the “mass-intensive ‘triangle proportions'”, the sharp and aggressive design has been further refined, making it suitable for the new era of CRF. claims the identity of The tank shroud, side covers, and rear fender have flush surfaces to enhance the sharp image. In addition, the muffler cover and the tool box on the left side have a shape that resembles the side number, and are used as design accents. Two body colors are available, red seats for the aggressive image of extreme red, and silver seats for the cool image of Ross White.
CRF250L Main Equipment
- Headlight visor that enhances fearlessness and multi-reflector headlights (60/55W) with excellent visibility
- Multi-function digital meter with fuel gauge, clock, trip/odometer
- Skid plate to prevent damage to the engine from mud and stones
- Left and right steering angles of 45° for easy maneuverability
- Luggage hook on the rear fender for convenient loading
- 7.7L capacity fuel tank
2012 Honda CRF250L Main Specifications
| Common name | CRF250L | ||
| Car name/model | Honda JBK-MD38 | ||
| Length x Width x Height (mm) | 2,195 x 815 x 1,195 | ||
| Wheel Distance (mm) | 1,445 | ||
| Minimum ground clearance (mm) | 255 | ||
| Seat height (mm) | 875 | ||
| Vehicle weight (kg) | 143 | ||
| Capacity (persons) | 2 | ||
| Minimum turning radius (m) | 2.3 | ||
| Engine model/type | MD38E・water-cooled 4-stroke DOHC 4-valve single cylinder | ||
| Total Displacement (cm3 ) | 249 | ||
| Inner Diameter x Stroke (mm) | 76.0×55.0 | ||
| Compression Ratio | 10.7 | ||
| Max output (kW [PS] / rpm) | 17 [23] / 8,500 | ||
| Maximum torque (N・m[kgf・m]/rpm) | 22[2.2]/7,000 | ||
| Fuel consumption rate (km/L) | 44.3 (60km/h level running test value) | ||
| Fuel supply system | Electronic / electronically controlled fuel injection system (PGM-FI) | ||
| Starting method | Self-operated | ||
| Ignition type | Full transistor battery ignition | ||
| Lubrication method | Combined pumping and splashing method | ||
| Fuel tank capacity (L) | 7.7 | ||
| Clutch type | Wet multi-plate coil spring type | ||
| Transmission type | Constant mesh 6-speed return | ||
| Transmission ratio | 1 speed | 3.333 | |
| 2 speed | 2.117 | ||
| 3 speed | 1.571 | ||
| 4 speed | 1.304 | ||
| 5 speed | 1.115 | ||
| 6 speed | 0.962 | ||
| Reduction ratio (primary/secondary) | 2.807/2.857 | ||
| Caster angle (degrees)/Trail amount (mm) | 27°35´/113 | ||
| Tire | Front | 3.00-21 51P | |
| Rear | 120/80-18M/C 62P | ||
| Brake type | Front | Hydraulic disc | |
| Rear | hydraulic disc | ||
| Suspension method | Front | Telescopic type (inverted type) | |
| Rear | Swing Arm Type (Prolink) | ||
| Frame format | Semi-double cradle | ||
- Manufacturer: Thai Honda Manufacturing Co., Ltd. | Country of manufacture: Thailand Importer: Honda Motor Co., Ltd.
