Honda CRF250M (JBK-MD38) 2013

2013 Honda CRF250M (JBK-MD38) Overview, Specs, Features, Supermotard Style Photos Gallery

Honda CRF250M is a supermotard style motorbike equipped with a water-cooled, 4-stroke, DOHC, 250cc engine with powerful and easy-to-handle output characteristics. It was launched on Thursday, April 25 2013.

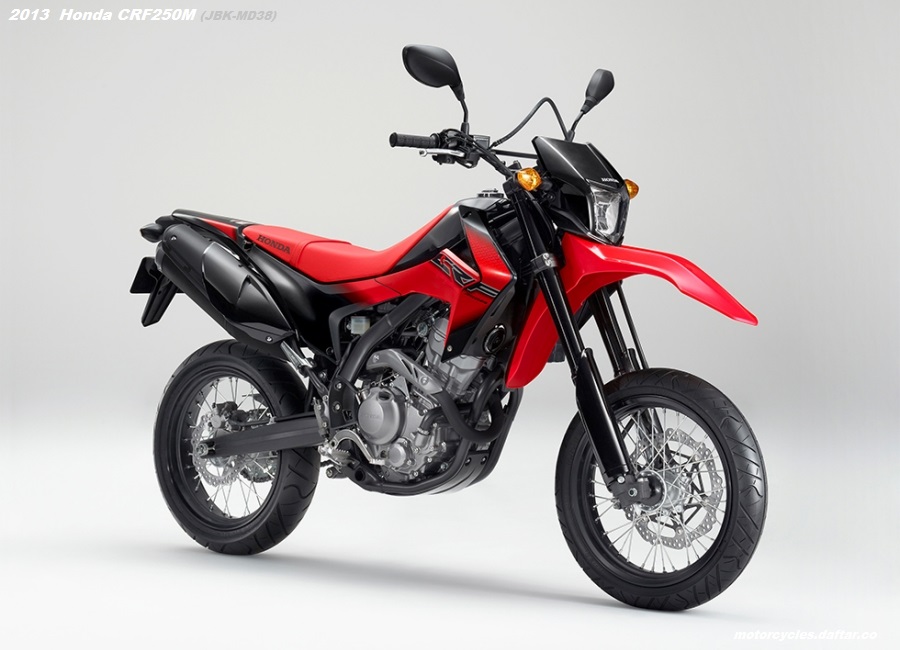

2013 Honda CRF250M (JBK-MD38) Red
Photo of Honda CRF250M (JBK-MD38) model year 2013.
Color: Extreme Red

The Honda CRF250M is based on the on/off-road model CRF250L, which was released in May 2012 and has been well received. It is a model that realizes styling full of feeling.

For the suspension, a large-diameter floating-type disc rotor is used for the front brake, and the rear suspension settings have been changed to make it easier to maneuver in pursuit of on-road steering stability.
The engine uses the water-cooled, 4-stroke, DOHC, 250cc single-cylinder engine that has a good reputation in the CRF250L and is powerful and has excellent fuel efficiency.

  • Supermotard is a popular competition, especially in Europe, in which off-road models are fitted with small-diameter wheels and on-road tires, competing for speed on a course that mixes pavement and dirt.

2013 Honda CRF250M

Planned sales volume (domestic/annual) : 2,000.
Manufacturer’s suggested retail price : 489,300 yen (466,000 yen without consumption tax)

  • Prices (including recycling costs) do not include insurance premiums, taxes (excluding consumption tax), registration fees, etc.
Honda CRF250M Supermoto

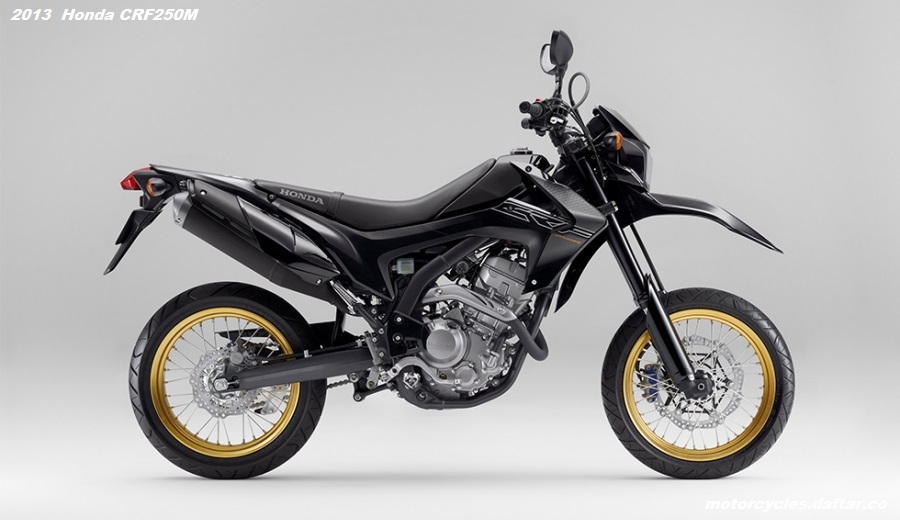

Image of Honda CRF250M Supermoto (Black)

Main Features of Honda CRF250M 2013

Styling

Based on the sharp styling of the CRF250L, exclusive coloring and graphics are applied to create a cool super motard image. The body color is two types of extreme red and black. Extreme Red has black aluminum wheels and red seats, while Black has gold aluminum wheels and black seats. In addition, the frame and swingarm are unified in matt axis gray metallic, and the front fork is black anodized to create a fearless image that emphasizes individuality.

Body/Suspension

While following the frame of the CRF250L, it is equipped with 17-inch on-road tires and front and rear suspension settings to pursue light handling and stability on winding roads in urban areas and suburbs. The front brake disc rotor has a diameter of 296mm, which is larger than the CRF250L’s 256mm, in consideration of on-road usability, to improve braking power. The seat height is set at 855mm, which is 20mm lower than the CRF250L, thanks to the adoption of 17-inch wheels front and rear, providing good grounding.

Engine

Like the CRF250L engine, it has both powerful torque characteristics from the low rev range and output characteristics that extend to high revs, which is typical of a water-cooled, 4-stroke, DOHC engine. In addition to the adoption of a wide range of low-friction technologies such as offset cylinders and roller rocker arms, the electronically controlled fuel injection system (PGM-FI *2) and O2 A synergistic effect between the installation of sensors and the catalyst device (catalyzer) installed in the muffler realizes high environmental performance and excellent fuel efficiency of 44.3 km / L (60 km / h constant driving test value). It has come true.

  • PGM-FI is a registered trademark of Honda

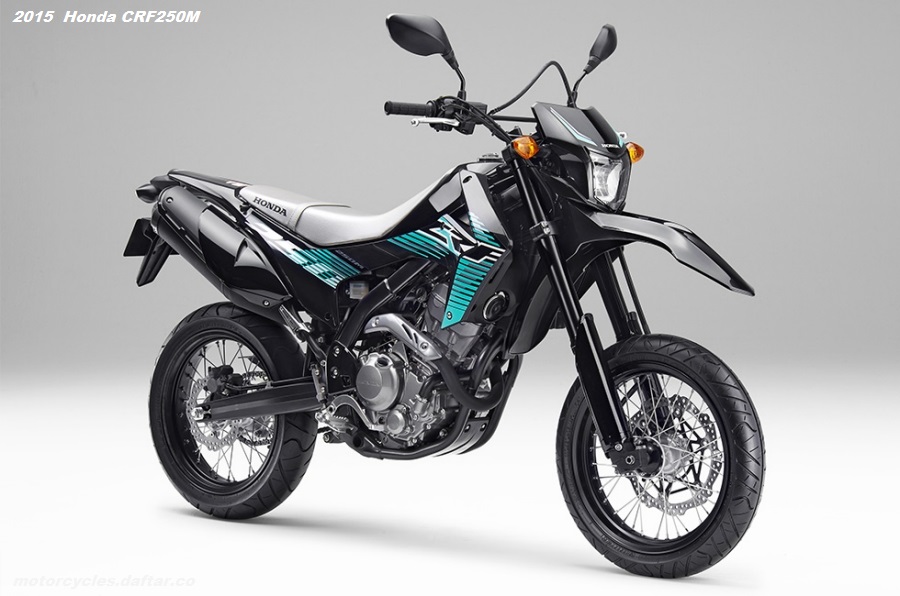

2015 Honda CRF250M Black
2015 Honda CRF250M picture.

Main Equipment of Honda CRF250M

  • 60/55W multi-reflector headlights with excellent visibility
  • Multi-function digital meter with fuel gauge, clock, trip/odometer
  • Luggage hook on the rear fender for convenient loading
  • 7.7L fuel tank

2013 Honda CRF250M Main Specifications

Nickname CRF250M
Car name/model Honda JBK-MD38
Length x Width x Height (mm) 2,125 x 815 x 1,150
Wheel Distance (mm)  1,445
Minimum ground clearance (mm) 225
Seat height (mm) 855
Vehicle weight (kg) 145
Capacity (persons) 2
Minimum turning radius (m) 2.3
Engine model/type MD38E・water-cooled 4-stroke DOHC 4-valve single-cylinder
Total Displacement (cm3 ) 249
Inner Diameter x Stroke (mm) 76.0×55.0
Compression Ratio 10.7
Max output (kW[PS]/rpm) 17[23]/8,500
Maximum torque (N・m[kgf・m]/rpm) 22[2.2]/7,000
Fuel consumption rate (km/L) 44.3 (60km/h level running test value)
Fuel supply system Electronically controlled fuel injection system (PGM-FI)
Starting method Self-operated
Ignition type Full transistor battery ignition
Lubrication method Combined pumping and splashing method
Fuel tank capacity (L) 7.7
Clutch type Wet multi-plate coil spring type
Transmission type Constant mesh 6-speed return
Transmission ratio 1 speed 3.333
2 speed 2.117
3 speed 1.571
4speed 1.304
5 speed 1.115
6speed 0.962
Reduction ratio (primary/secondary) 2.807/2.785
Caster angle (degrees)/Trail amount (mm) 25°45′/71
Tire Front 110/70-17M/C 54S
Rear 130/70-17M/C 62S
Brake type Front Hydraulic disc
Rear Hydraulic disc
Suspension method Front Telescopic type (inverted type)
Rear Swing Arm (Pro-Link)
Frame format Semi-double cradle
