Fully Remodeled 2021 Honda Dio110 Scooter – Specs, Price, Review
 |

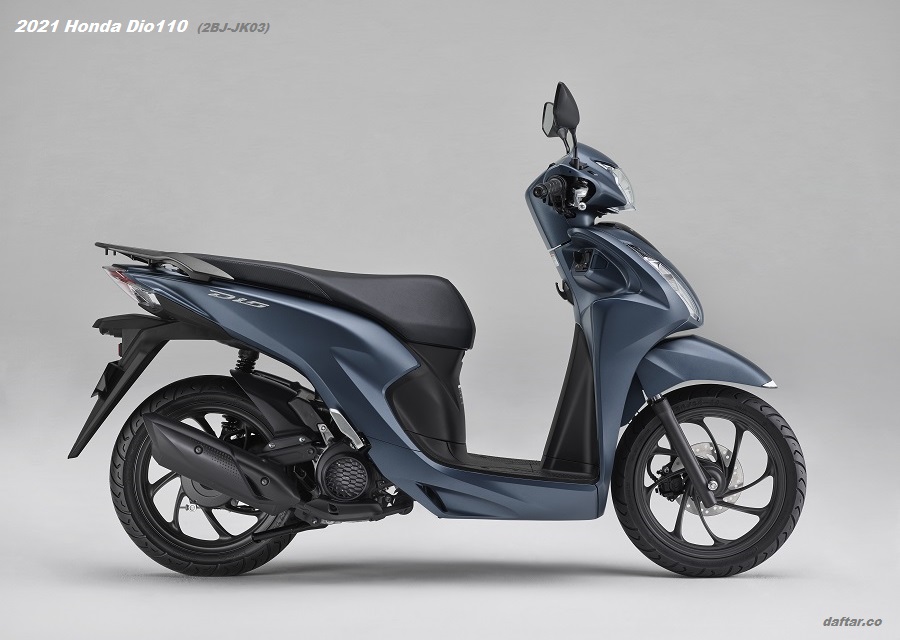

| Photo of Honda Dio110. Serie: 2BJ-JK03. Release date: 2021-02-25. Body colour: Matte Starry Blue Metallic. |
Honda has a newly designed engine eSP*1 and a lightweight and highly rigid frame eSAF*2 on the Dio110, a two-kind scooter with a moped that combines light driving and easy-to-use output characteristics. will be fully remodeled, including the adoption of the highly convenient Honda SMART Key system, and will be released on February 25 (Thursday) 2021.
 |

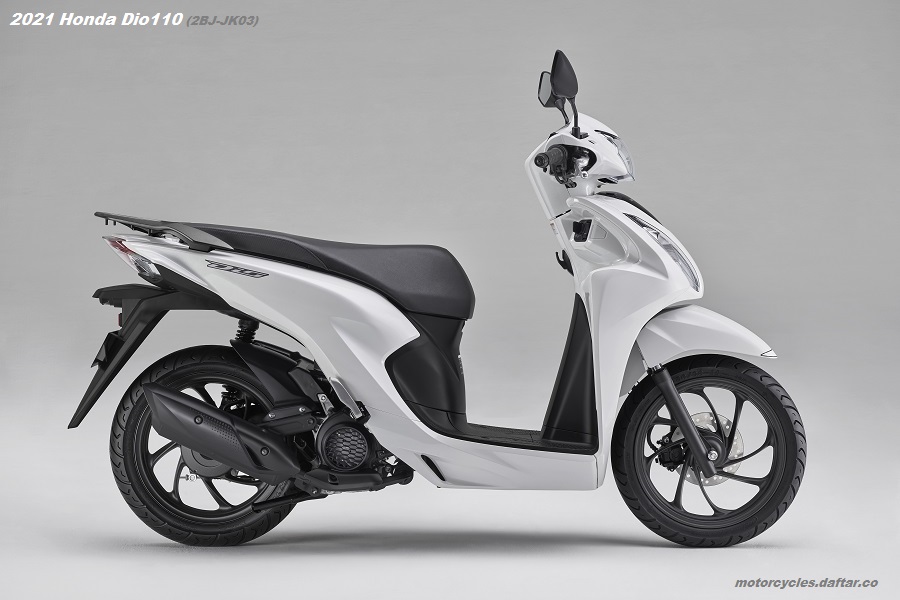

| Picture of Honda Dio110 (Pearl Jasmine White) 2BJ-JK03 |
This time, the newly designed air-cooled, 4-stroke, OHC, 109cc single-cylinder engine eSP installed in the Dio110 has a compact combustion chamber with an increased compression ratio, and the engine has a longer stroke to further improve fuel efficiency. Achieves both powerful driving and environmental performance at a high level. In addition, the newly designed frame eSAF uses high-strength steel plate as the pressed material and adopts the latest technology such as laser welding to make it a highly rigid and lightweight frame. In addition, we have enhanced the equipment to improve usability, such as adopting the Honda SMART Key system and the ECO indicator that supports fuel-efficient driving.
- *1 eSP : An abbreviation for enhanced (enhanced, value-enhancing) Smart (sophisticated, precise and highly sensitive) Power (power, engine), fuel-efficient technology and It is a general term for scooter engines that have improved environmental performance and power performance by adopting advanced technologies such as ACG starter.
- *2 eSAF : enhanced (enhanced, value-enhancing) Smart (sophisticated, precise and highly sensitive) Architecture (structure, composition) Frame (body, frame).
Main Features of Dio110
 |

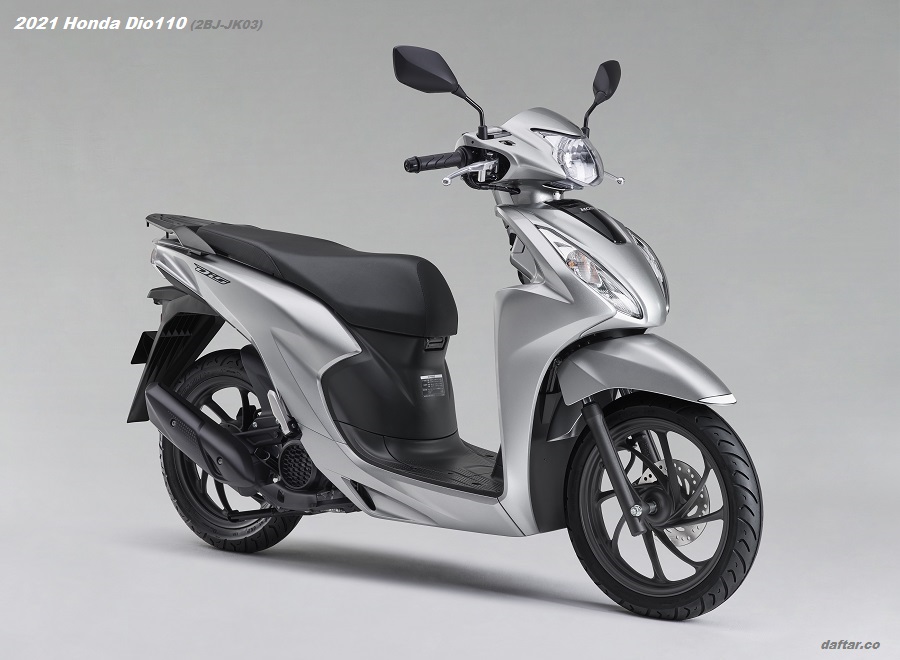

| Image of Honda Dio110 2BJ-JK03 (Descent Silver Metallic) |
Newly designed engine eSP
The engine is equipped with a newly designed eSP with improved combustion efficiency. The combustion chamber is made compact, the compression ratio is increased, and the inner diameter x stroke is changed to increase the stroke. The output and torque in the low and middle rev range have been improved for a light and powerful ride. In addition, in order to more efficiently transmit the power from the engine to the rear wheels in the drive system, a double cog belt is used to contribute to lower fuel consumption.
Newly designed frame eSAF
that uses the latest technology to achieve high rigidity and light weight.
The frame uses a newly designed frame eSAF that uses high-tensile steel plate (high-tensile material) and is highly rigid and lightweight. The conventional steel pipe frame is press-molded with high processing accuracy, and the molded skeleton is welded with a laser. In addition, taking advantage of press molding, the frame is strong against external force from the vertical direction, which further enhances the absorption of the impact that the suspension receives from the road surface, and together with the weight reduction, realizes comfortable and nimble driving. increase.
Full and attractive equipment
The newly adopted Honda SMART Key system enables unlocking of the main switch knob without removing the smart key itself. In addition to newly adopting a front inner box with a lid, the meter has an ECO indicator that supports fuel-efficient driving and a liquid crystal display that displays the mileage, etc. in the analog meter to further improve usability. I was allowed to.
Active and high-quality styling as the driving evolves
The styling expresses more activity with a dynamic body line, and the muffler cover and floor steps are given a geometric pattern to create a high-quality feel. All four colors are available, including the refreshing “Pearl Jasmine White”, the sophisticated “Descent Silver Metallic”, the calm “Matte Starry Blue Metallic”, and the fearless “Matte”. A matte color type of “Galaxy Black Metallic” is also available. As a specification exclusively for the matte color type, a three-dimensional emblem is applied to the rear side of the car body and gray stitching is applied to the seat to create a special feeling.
Honda Dio110 Main specifications
| Common name | Dio110 | |
| Vehicle name/model | Honda 2BJ-JK03 | |
| Overall length x Width x Height (mm) | 1,870 x 685 x 1,100 | |
| Wheelbase (mm) | 1,255 | |
| Minimum ground clearance (mm) ★ | 150 | |
| Seat height (mm) ★ | 760 | |
| Vehicle weight (kg) | 96 | |
| Riding capacity (persons) | 2 | |
| Minimum radius of gyration (m) | 1.8 | |
| Engine model/type | JK03E/Air-cooled 4-stroke OHC single cylinder | |
| Total displacement (cm3) | 109 | |
| Inner diameter x stroke (mm) | 47.0 x 63.1 | |
| Compression ratio ★ | 10.0 | |
| Maximum output (kW [PS]/rpm) | 6.4 [8.7]/7,500 | |
| Maximum torque (N ･ m [kgf ･ m]/rpm) | 9.0 [0.92]/5,750 | |
| Fuel consumption rate* 3(km/L) | Ministry of Land, Infrastructure, Transport and Tourism notification value Fuel consumption value* 4(km/h) |
59.4 (60) (when two people are on board) |
| WMTC mode value ★ (Class)* 5 |
54.9 (Class 1) (when one person is on board) | |
| Fuel supply device type | Electronic type (electronically controlled fuel injection device (PGM-FI)) | |
| Starting method ★ | Self-type | |
| Ignition system type ★ | Full transistor battery ignition | |
| Fuel tank capacity (L) | 4.9 | |
| Transmission type | Continuously variable transmission (V-matic) | |
| Tires | Front | 80/90-14M/C 40P |
| Rear | 90/90-14M/C 46P | |
| Brake type | Front | Hydraulic disc |
| Rear | Mechanical Reading Trailing | |
| Suspension method | Previous | Telescopic method |
| Rear | Unit swing type | |
| Frame format | Underbone | |
■ Numerical values of type approval application form based on the Road Transport Vehicle Law (★ items are Honda published specifications)
■ Manufacturer/Honda Vietnam Co., Ltd. ■ Country of manufacture/Vietnam ■ Importer/Honda Motor Co., Ltd.
- * 3The fuel consumption rate is the value under the specified test conditions. It depends on various conditions such as the customer’s usage environment (weather, traffic jam, etc.), driving method, vehicle condition (equipment, specifications) and maintenance condition.
- * 4The constant fuel consumption value is the fuel consumption rate based on the actual measurement of driving at a constant vehicle speed.
- * 5The WMTC mode value is a calculated value based on the exhaust gas test results measured in the driving mode, which is an international standard including starting, accelerating, and stopping. Driving mode classes are categorized by displacement and top speed
 |

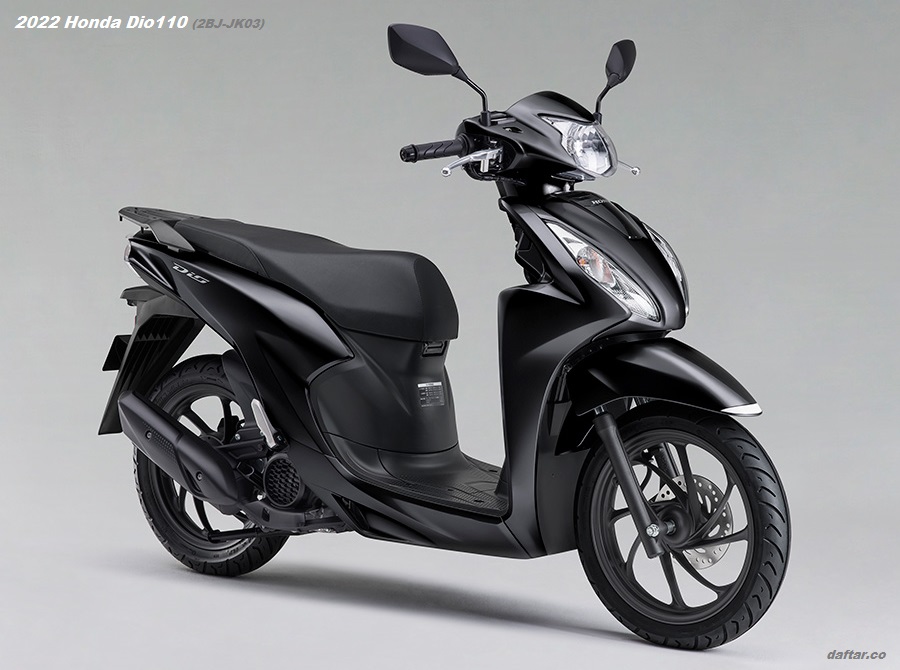

| Photo of Honda Dio110. (Model serie: 2BJ-JK03) Release date: 2022-07-28. Body Colour: Poseidon Black Metallic. |
2022 Honda Dio110 color variations
・ Poseidon Black Metallic (new color)
・ Pearl Jasmine White
・ Descent Silver Metallic
・ Matt Starry Blue Metallic
Honda Dio110 Price
2021 – Sales plan (Japan domestic/annual) : 3,600 units
Manufacturer’s suggested retail price in Japan year 2021(including 10% consumption tax)
- Dio110 (Pearl Jasmine White, Descent Silver Metallic) : 242,000 yen (main unit price excluding consumption tax 220,000 yen)
- Dio 110 (Matte Starry Blue Metallic, Matte Galaxy Black Metallic) : 245,300 yen (main unit price excluding consumption tax 223,000 yen)
2022 – Planned sales volume (JDM/annual) : 5,600 units
Manufacturer’s suggested retail price 2022 (including 10% consumption tax)
- Poseidon Black Metallic, Pearl Jasmine White, Descent Silver Metallic : 242,000 yen (main unit price excluding consumption tax 220,000 yen)
- Matte Starry Blue Metallic : 245,300 yen (main unit price excluding consumption tax 223,000 yen)
* Prices (including recycling costs) do not include insurance premiums, taxes (excluding consumption tax), registration costs, etc.
