Honda PCX150 JBK-KF12 2012

2012 Honda PCX150 JBK-KF12 – New Variant of Honda’s Premium Motorcycle Scooter

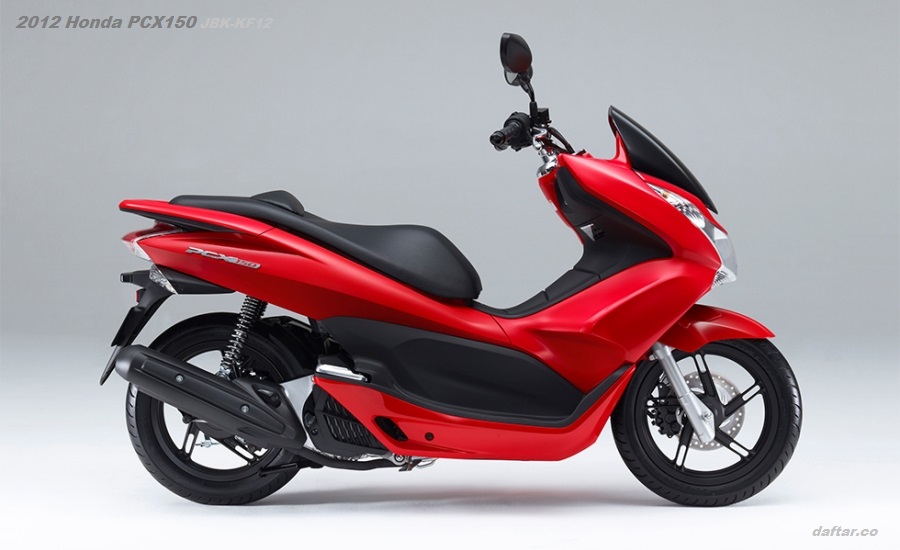

2012 Honda PCX150 JBK-KF12 photo Millennium Red
Honda PCX150 photo.
Model serie : JBK-KF12.
Launching date: 2012-06-07.
Body Color: Millennium Red

Honda PCX150 is a new light-weight two-wheeled premium scooter equipped with a newly developed water-cooled, 4-stroke, single-cylinder 150cc engine that has more power and excellent environmental performance such as adopting an idling stop system which automatically shuts off the PCX when stopped. PCX150 was released on June 7 (Thursday), 2012.

The Honda PCX is a scooter developed by Honda. It is produced by Thai Honda Manufacturing in Thailand, and was first introduced for sale in November 2009. In 2012, the original engine was redesigned to decrease friction, increasing efficiency, and the displacement was increased to 152.9 cc.

Light two-wheeled scooters are popular because of their high convenience, which is suitable for a wide range of purposes, from city driving such as commuting to work and school to touring using toll roads. In order to meet the diversifying needs of customers in the light motorcycle market, the PCX150 retains the “compact size” and “affordable price” of the two-wheeled moped scooter PCX, while maintaining “comfortable power performance and environmental performance.” It was developed with the keyword “compatibility”.

Honda PCX150 2012 Pearl Himalayas White
Picture of Honda PCX150 (JBK-KF12).
Colour: Pearl Himalayas White

The engine is a newly developed global engine for scooters “eSP” with improved durability, quietness, and fuel efficiency. *1 Equipped with a series 150cc engine. This water-cooled, 4-stroke, single-cylinder 150cc engine uses an electronically controlled fuel injection system (PGM-FI) *2. High fuel efficiency of 49.0km/L (60km/h constant-land driving test value) has been achieved by thoroughly reducing friction in various parts. It is also equipped with an idling stop system that automatically stops the engine when the vehicle is stopped. The body uses 14-inch large-diameter wheels for the front and rear wheels to achieve excellent driving stability and a comfortable ride. Furthermore, by equipping Honda’s original combination brake (front/rear wheel interlocking brake) as standard equipment, it is possible to efficiently obtain stable braking force. The design has a sleek form and dual halogen headlights with a distinctive turn signal, creating a high-quality presence. For storage, the storage space under the seat has a capacity of 25L *3 and the front cowl has a capacity of 1.5L *3 . An inner box of is provided for comfortable usability.

PCX150 is produced by Thai Honda Manufacturing Company Limited in Thailand, and by improving efficiency from procurement to production, high quality and affordable price are realized.

  • * 1 enhanced (enhanced, enhanced value) Smart (sophisticated, precise and highly sensitive) Power (power, engine) is an abbreviation for fuel-efficient technology and advanced technologies such as ACG starter. , A general term for water-cooled engines for scooters with improved environmental performance and power performance.
  • * 2 PGM-FI is a registered trademark of Honda
  • * 3 Honda measurements

New Honda PCX150 Features

Newly developed 150cc engine that achieves both high power performance and environmental performance

The newly developed lightweight, compact water-cooled, 4-stroke, single-cylinder 150cc engine has a wide range of features such as offset cylinders, roller rocker arms, shell-type needle bearings for rocker arm shafts, and intelligent power generation control. We have implemented a thorough reduction in friction. In addition, by also adopting PGM-FI that supplies the optimum amount of fuel, it has ample power in the entire rotation range and high fuel efficiency of 49.0km/L (60km/h constant-land driving test value). It was realized. In addition, it is equipped with an idling stop system that automatically stops the engine when the vehicle is stopped, such as when waiting for a traffic light or in a traffic jam, reducing unnecessary fuel consumption and exhaust gas during idling, and demonstrating high environmental performance. A catalyst device (catalyzer) is installed in the muffler to comply with domestic motorcycle emission regulations.

Reliable driving performance

14-inch aluminum wheels are used for the front and rear wheels to achieve excellent driving stability and a comfortable ride. A disc brake equipped with a compact and lightweight 3-pot caliper that demonstrates stable braking performance is used on the front. Furthermore, by simply operating the rear wheel brake (left lever), the braking force is appropriately distributed to the front wheels, and Honda’s original combination brake (front/rear wheel interlocking brake) that enables efficient and stable braking is standard equipment. .. Excellent operability is achieved by the low center of gravity design with the fuel tank installed at the feet and the upright riding position with the steering wheel, seat, footrest, etc. arranged in a well-balanced manner.

Sophisticated styling to satisfy the joy of owning

The styling has a sleek and elegant form that extends from the characteristic front face that uses large headlights with integrated turn signals to the rear short tail cowl, giving it a sophisticated image with a strong presence. The sporty impression of mirrors and wheels, plated pipe handles, and other details of the car body are thoroughly pursued for beauty to satisfy the joy of ownership. In addition, it is equipped with an emblem dedicated to Honda PCX150.

Full equipment that enhances usability

We have secured a space of 25L under the seat so that you can play an active part in all rounds such as commuting, school and leisure. There is also an easy-to-use 1.5L inner box inside the front cowl. Equipped as standard with a key cylinder with a shutter that is highly effective in deterring tampering and theft, a fuel tank lid and seat open switch that can be opened with a single touch, and a center stand and side stand that can be used properly. In addition, the seat height has been set to 760mm *4 in consideration of foot comfort. In addition, usability is taken into consideration, such as a 35L large-capacity top box, a long type windshield, and an ETC on-board unit as an option.
*4 Honda measurements

Two high-class color variations

  • Pearl Himalayan’s White
  • Millennium Red

2012 Honda PCX150 Price

Sales plan (JDM/annual) : 2,000 units.

Manufacturer’s suggested retail price in Japan: 329,700 yen (main unit price excluding consumption tax 314,000 yen)

* Prices (including recycling costs) do not include insurance premiums, taxes (excluding consumption tax), and various costs associated with registration.

Honda PCX 150 Parts and Accessories

You might also interested to check the price of spare parts or accessories for Honda PCX 150 motorbike.

  • Sixity Front Organic Brake Pads 2015 Honda PCX150 Set Full Kit WW Complete.
    Exceptionally smooth, controlled braking performance and lever response for motorcycles, dirt-bikes and ATVs. Superior performance in wet, muddy or sandy conditions..
    Eliminates brake grind and pad squeal with our advanced, vibration damping brake pad composite..
    Minimal rotor wear keeps polished or chrome-plated rotors looking new.. Sixity. .
  • BLACK CARBON MOTORCYCLE CRUISER CUSTOM REARVIEW MINI MIRRORS FOR 2013 Honda PCX150 – $59.95.
    Fit for 2013 Honda PCX150.
    1Pair(Left & Right) Material: Plastic Mirror Housing + Aluminum Stem with Black Finish..
    Stem Length: Approx 4-1/2″ .. MotorToGo. Black.
  • 12V 6AH GEL Battery for Honda 150 PCX150 2013-2014 – Mighty Max Battery brand product.
    YTZ7S GEL is a 12V 6AH 130 Cold Cranking Amps (CCA) GEL (Maintenance Free) Battery.
    Dimensions: 4.50 inches x 2.81 inches x 4.21 inches. Polarity: Negative on left, Positive on right. Listing is for the Battery and Screws only. No wire harness or mounting accessories included..
    Factory activated GEL battery. Maintenance free. No acid pack needed. Advanced design works right out of the box and requires no maintenance yet offers the option to prolong the standard life by adding extra electrolytes.. Mighty Max Battery. .
  • Honda 08L70-KZY-910 Rear Trunk Attachment Kit.
    Honda. . 08L70-KZY-910
  • CUSTOM ALUMINUM BLACK RECTANGLE MOTORCYCLE SIDE REAR VIEW MIRRORS FOR Honda PCX150 – $80.00.
    Black surface with blue glass mirrors.
    Mirror size (approx.): 4- 5/8″ x 1- 7/8″.
    High quality ALUMINUM with black finish.. MotorToGo. Black.
  • 2013 Honda PCX150 Motorcycle Touch-Up Paint EcoSpray+ Aerosol Paint – Asteroid Black Metallic HON023 – Essential Package.
    Touch up your 2013 Honda PCX150 today!.
    Essential Package includes: 13.5oz Aerosol of Selected Color and 17oz Aerosol ClearCoat..
    Super-fast shipping on all orders!. TouchUpDirect. Asteroid Black Metallic.
  • Caltric REAR BRAKE SHOES Fits HONDA PCX150 PCX-150 PCX-150 2012 2013.
    l. Caltric. .
  • 2013 Honda PCX150 Motorcycle Touch-Up Paint Touch Up EcoJar+ – Asteroid Black Metallic HON023 – Essential Package.
    Touch up your 2013 Honda PCX150 today!.
    Essential Package includes: Jar of Selected Color and a ClearCoat Jar..
    Super-fast shipping on all orders!. TouchUpDirect. Asteroid Black Metallic.
  • TouchUpDirect 2011 Honda PCX150 Exact-Match Motorcycle Touch-Up Paint – HON017 Pearl Himalayas White – 0.5 oz. Jar – Essential Package.
    Brush-in-cap style applicator designed to be easy to hold that provides increased paint flow control..
    Duplicates your original Honda color. 100% satisfaction guaranteed..
    Recommended for typical parking lot scratches such as scraped mirror or scuffed bumper.. TouchUpDirect. Pearl Himalayas White.
  • 2013 Honda PCX150 Motorcycle Touch-Up Paint Touch Up EcoPen – Candy Rosy Red Tricoat HON024 – Preferred Package.
    Touch up your 2013 Honda PCX150 today!.
    Preferred Package includes: Pen of Selected Color, Pen of MidCoat, ClearCoat Pen, Primer Pen, Wax & Grease Remover Handy Wipe, and Latex Gloves..
    Super-fast shipping on all orders!. TouchUpDirect. Candy Rosy Red Tricoat.

Honda PCX150 Specifications

Main specs of Honda PCX 150 2012:

Common name PCX150
Vehicle name/model Honda/JBK-KF12
Predessor Honda PCX 125
Overall length x Overall width x Overall height (mm) 1,915 x 740 x 1,090
Wheelbase (mm) 1,315
Minimum ground clearance (mm) 130
Seat height (mm) 760
Vehicle weight (kg) 129
Riding capacity (person) 2
Minimum turning radius (m) 2.0
Engine model/type KF12E/Water-cooled 4-stroke OHC single cylinder
Total displacement (cm3 ) 152
Inner diameter x stroke (mm) 58.0 x 57.9
compression ratio 10.6
Maximum output (kW [PS]/rpm) 9.9 [13]/8,500
Maximum torque (N ・ m [kgf ・ m]/rpm) 14 [1.4]/5,500
Fuel consumption rate (km/L) 49.0 (60km/h constant-land driving test value)
Fuel supply device type Electronic control fuel injection device (PGM-FI)
Starting method Self-type
Ignition system type Full transistor battery ignition
Lubrication method Pumping splash combination type
Fuel tank capacity (L) 5.9
Clutch type Dry type multi-plate shoe type
Transmission type Continuously variable transmission (V-matic)
Gear ratio 1 speed 2.450 ~ 0.810
Reduction ratio 1 Next 3.117
2 Next 3.384
Caster angle (degrees)/trail amount (mm) 27 ° 00´/86
Tires Front 90/90-14 M/C 46P
Rear 100/90-14 M/C 51P
Brake type Front Hydraulic disc (Single 220 mm disc with a three-piston caliper & CBS)
Rear Mechanical Reading Trailing
Suspension method Front Telescopic method
Rear Unit swing type
frame format underbone

* Manufacturer: Thai Honda Manufacturing Co., Ltd. Country of manufacture: Thailand Importer: Honda Motor Co., Ltd.
