Honda Super Cub C90

Honda Super Cub C90 Pictures, Motorcycle Photos, Specifications, Parts and Price

Honda Super Cub C90 motorcycle

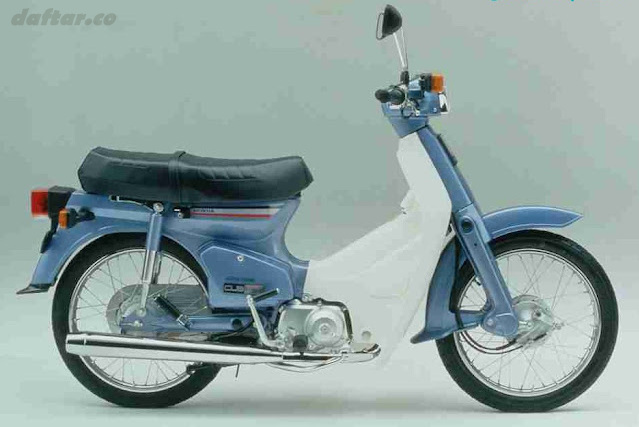

Image of Honda Super Cub C90.

Looking for information about Honda Super Cub C90?? You are in the right place. Here the source of info related to Honda Super Cub C90 collected from internet for your references : specs, reviews, parts & accessories, new and used price, motorbike photos, videos and discussion.

The Honda Super Cub is a Honda underbone motorcycle with a four stroke single cylinder engine ranging in displacement from 49 to 109 cc (3.0 to 6.7 cu in).

Honda Super Cub C90 Specs

Honda C90 Technical Specification

ENGINE UNIT

Type: Air Cooled, Single Cylinder, 4 Stroke, Chain Driven

Overhead Camshaft.

Cylinder inclined at 80° from vertical

Bore & Stroke: 50 mm x 45-6 mm (1-9685 ins x 1-7953 ins)

Cylinder Capacity: 89-535 cc (5463 cu ins)

Compression Ratio: 8-21

Carburettor: Keihin Piston ValveType

Ignition: Coil

Battery: 6 Volt 6 A.H.

Lubrication System: Wet Sump

Oil Capacity: 0-9 litre (1 -6 pts)

Starting Method: Kickstart

Spark Plug: N.G.K. D-6HW or D6HS

Clutch: Automatic Centrifugal type

Transmission: 3 speed. Operated by leftfoot, gear change lever

Primary Reduction: 3-72

Gear Ratios: 1 st 2-538 2nd 1-555 3rd 1000

Final Reduction: 2-857

Maximum Power: 7-5 P.S. @ 9,500 R.P.M.

Maximum Torque: 0-67 Kg-m @ 6,000 R.P.M. (4-8 Ibsft)

FRAME

Type: Tubular and Pressed Steel, Open

Frame Type

Front Suspension: Leading Link

Type Pressed Steel Fork

Rear Suspension: Swinging Arm

TYRES:

Front.2-50×17(4PR) Rear. 2-50×17(4PR)

Tyre Pressures: Front 1 -7 Kg-cm 2 (24 Ibs sq ins) Rear 2-1 Kg-cm2 (30 Ibs sq ins)

BRAKES:

Front. Internal Expanding

Rear. Internal Expanding

Petrol Tank Capacity: Including Reserve 5-5 litres (9-7 pints)

Reserve 1 litre (1 -76 pints) Overall Length: 1830 mm ( 72-1 ins) Overall

Width: 640 mm ( 25-2 ins)

Overall Height: 995 mm ( 39-2 ins)

Wheelbase: 1190 mm ( 46-9 ins)

Ground Clearance: 130 mm ( 5-1 ins)

Seat Height: 760 mm ( 30-0 ins)

Curb Weight: 85 Kg (187-4 Ibs)

Honda Super Cub C90 Features

Standard Equipment

Dual Seat, Pillion Footrests, Steering Lock, Heimet Holder Lock, Stop Light, Driving Mirrors, Winking Indicator Lights, Speedometer and Tool Kit.
