Information About 1983 Honda TLM50 (A-AD07) Specs & Trial Motorcycle Photos
 |

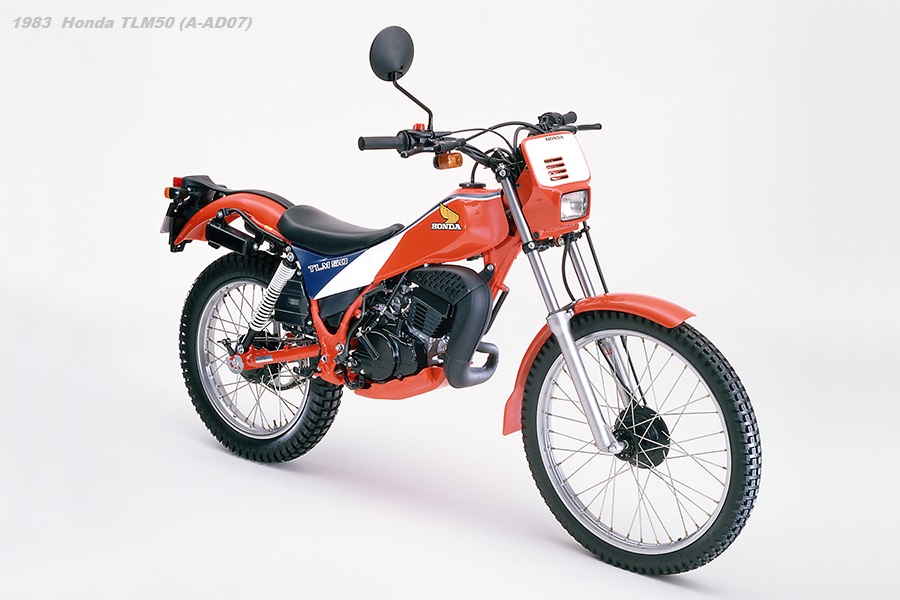

| Honda TLM50 (A-AD07) picture. Model year: 1983. Color: Red |
Honda TLM50 model year 1983 is a lightweight and slim entry-level trial motorcycle equipped with an air-cooled 2-stroke 49cc engine.
Released in December 20th 1983, the TLM50 was the first 50cc trial model since the Bials TL50. However, while the Bials TL50 was a 4-stroke engine, the TLM50 was equipped with an air-cooled 2-stroke engine. Although it was a 2-stroke trial machine, it was equipped with a device (HERP) that pushed the air-fuel mixture back into the combustion chamber to increase the charging efficiency. In addition, although it was an introductory model, the rear suspension adopted a mechanism that could adjust the shock absorption performance in five stages according to the situation. Equipped with a 5-speed transmission and a plastic skid plate at the bottom of the engine. Despite its slim body, the fuel tank capacity is 4 liters. 30km/h constant driving fuel consumption is 60km per liter.
This Honda TLM50 was developed as a sports bike that can be enjoyed in a wide range of ways, from full-scale trials to touring. The engine is equipped with a new 2-cycle 49cc engine with * HERP that exhibits tenacious output characteristics even at low speeds. The rear suspension adopts a mechanism that allows the shock absorption performance to be adjusted in 5 stages according to the purpose of use.
In addition, the body adopts a lightweight, highly rigid, slim semi-double cradle type. Furthermore, the steering wheel turning angle is set at 62 degrees to the left and right from the center, and combined with a minimum ground clearance of 305 mm and large-diameter wheels (front 2.50-21, rear 3.50-18), it is a full-fledged car even in the 50cc class. It is a bike that can be used for trials.
*HERP, an abbreviation of Honda Energy Resonance Pipe, is a device that pushes the air-fuel mixture back into the cylinder and promotes charging efficiency into the combustion chamber even at low speeds.
Honda TLM50 Price at 1983
Sales plan (domestic/annual) : 18,000 units planned.
National Standard Cash Price : 179,000 yen (excluding Hokkaido, Okinawa and some other remote islands).
 |

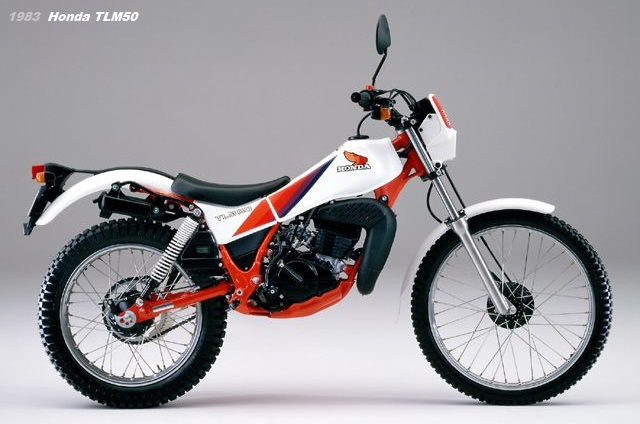

| Photo of 1983 Honda TLM50 photo. Body color: white. |
Other Key Features of Honda TLM50
○ Lightweight and slim body design (dry weight 73 kg).
○ Equipped with a meter visor that can be shared with the number plate.
○Headlights (25/25W) use resin lenses to reduce weight.
○ Uses a plastic skit plate to guard the engine on rough roads.
Equipped with an easy-to-read and functional small meter and indicator lamp.
○ Uses 95φ small diameter drum brakes on the front and rear wheels.
1983 Honda TLM50 (A-AD07) Main Specifications
| Model | A-AD07 | |
| Total length (m) | 1.985 | |
| Width (m) | 0.825 | |
| Total height (m) | 1.070 | |
| Length (m) | 1.290 | |
| Minimum ground clearance (m) | 0.305 | |
| Seat height (m) | 750 | |
| Vehicle weight (kg) | 78 | |
| Dry weight (kg) | 73 | |
| Capacity (persons) | 1 | |
| Fuel consumption (km/L) | 60.0 (30km/h level running test value) | |
| Slope climbing ability (tanθ) | 0.57 (about 29 degrees) | |
| Minimum turning radius (m) | 1.6 | |
| Engine model | AD07E (air-cooled 2-stroke piston reed valve) | |
| Displacement(cm3 ) | 49 | |
| Inner Diameter x Stroke (mm) | 39.0×41.4 | |
| Compression Ratio | 7.3 | |
| Max output (PS/rpm) | 4.8/7,000 | |
| Max torque (kg-m/rpm) | 0.52/6,500 | |
| Carburetor model | PF13 | |
| Starting method | Primary kick | |
| Ignition method | Contactless CDI | |
| Lubrication method | Separate lubrication method | |
| Lubricant tank capacity (L) | 0.7 | |
| Fuel tank capacity (L) | 4.0 | |
| Clutch type | Wet multi-plate coil spring | |
| Transmission type | Constant mesh 5-speed return | |
| Transmission ratio | 1st | 4.000 |
| 2 speed | 2.769 | |
| 3 speed | 1.882 | |
| 4 speed | 1.130 | |
| 5 speed | 0.960 | |
| Reduction ratio (primary) | 4.583 | |
| Caster (degrees) | 25°00′ | |
| Trail (mm) | 68 | |
| Tire size | (Front) 2.50-21-4PR/(Rear) 3.50-18-4PR | |
| Brake type | (Front) Mechanical leading trailing/ (Rear) Mechanical leading trailing |
|
| Suspension method | (Front) Telescopic (coil spring)/ (Rear) Swing arm (coil spring) |
|
| Frame format | Semi-double cradle | |
