2013 Honda ZOOMER X (NEW) Specs, Price, Review, Photos Gallery – 110cc Scooter with Innovative and Unique Styling
 |

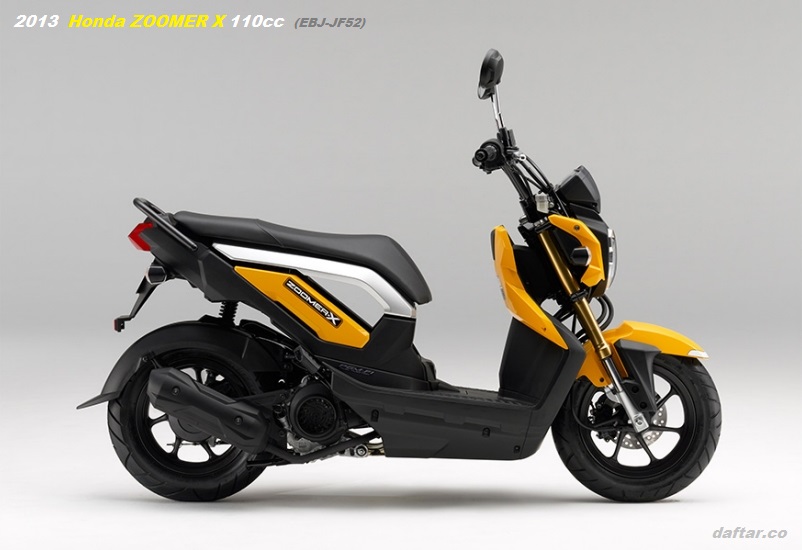

| New Honda ZOOMER X 110cc photo. Model: EBJ-JF52 (Second Generation). Color: Marigold Yellow. Release date: 2013-06-14. |
The Honda ZOOMER X is a 110cc naked scooter for trend-conscious young people. The styling has a playful, innovative and unique design.
Honda released the innovative styling naked scooter “Zoomer X” on June 14th (Friday), 2013. The engine uses an air-cooled, 4-stroke, OHC, 110cc single cylinder with powerful output characteristics. With the automatic mechanism, you can enjoy smooth driving. By adopting an electronically controlled fuel injection system (PGM-FI*), excellent fuel efficiency of 52.0km/L (60km/h constant-land driving test value) has been achieved.
The free space under the original seat of Honda Zoomer X is full of playfulness that corresponds to various usages of users. In addition, the design is thoroughly focused on, such as applying the “X” motif to various parts of the body.
A frame with excellent rigidity is used for the car body. Aluminum cast wheels and wide tires are attached to the front and rear wheels of the suspension, and the front suspension uses an inverted type that is reminiscent of a sports model, contributing to stable driving.
Main Features of Honda ZOOMER X
 |

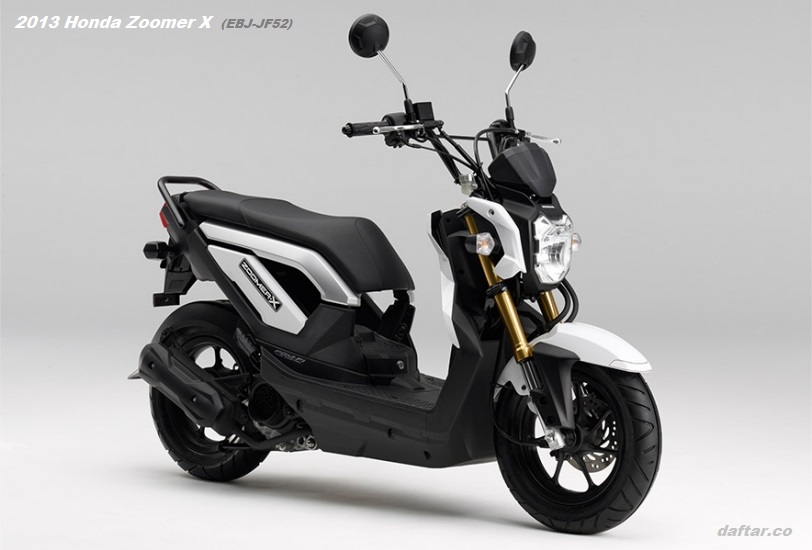

| Picture of Honda Zoomer X (EBJ-JF52). Body Color: Ross White. |
Design
A playful and unique naked scooter styling is realized. The “X” motif is used everywhere in the headlights, instrument panel, muffler protector, etc. to reflect the playfulness in every detail. There are four unique body colors to choose from, including Marigold Yellow, Ross White, Gay Etty Red, and Tektite Black Metallic.
Bigger Engine
The air-cooled, 4-stroke, OHC, 110cc single-cylinder engine has powerful output characteristics in the low and medium rpm range, and you can enjoy smooth running with the continuously variable transmission V-matic mechanism. By adopting an electronically controlled fuel injection device (PGM-FI) that enables fine fuel supply in various driving conditions, good fuel efficiency of 52.0km/L (60km/h constant-land driving test value) has been achieved. increase.
Frame/Undercarriage
The underbone frame is designed with excellent rigidity. You can enjoy stable driving by installing an inverted type front fork and wide tires on 12-inch aluminum cast wheels on the front and rear wheels. The free space provided under the seat makes it possible to store various goods depending on the device, and is a device that stimulates playfulness. The brake system uses a combination brake (front/rear wheel interlocking brake) that is easy to use and has excellent braking performance.
New Honda ZOOMER X 110 Main Equipment
- Key cylinder with shutter that closes the keyhole by integrating the main switch and handle lock mechanism
- A long seat that allows you to ride comfortably when riding in tandem, and a rear grip that is easy to use
- Speedometer equipped with fuel gauge
- Wide bar type handle
- Turn signal with separate body
Honda ZOOMER X Specifications
Here the main specs of 2013 Honda Zoomer X:
| Common name | Zoomer X | |
| Vehicle name/model | Honda EBJ-JF52 | |
| Predessor | BA-AF58 (Honda Zoomer Old 50cc) | |
| Overall length x Width x Height (mm) | 1,830 x 760 x 1,065 | |
| Wheelbase (mm) | 1,255 | |
| Minimum ground clearance (mm) | 135 | |
| Seat height (mm) | 763 | |
| Vehicle weight (kg) | 105 | |
| Riding capacity (person) | 2 | |
| Minimum turning radius (m) | 1.8 | |
| Engine model/type | JF52E/Air-cooled 4-stroke OHC single cylinder | |
| Total displacement (cm3) | 107 | |
| Inner diameter x stroke (mm) | 50.0 x 55.0 | |
| compression ratio | 9.5 | |
| Maximum output (kW [PS]/rpm) | 6.5 [8.8]/8,000 | |
| Maximum torque (N ・ m [kgf ・ m]/rpm) | 8.9 [0.91]/6,500 | |
| Fuel consumption rate (km/L) | 52.0 (60km/h constant-land driving test value) | |
| Fuel supply device type | Electronic control fuel injection device (PGM-FI) | |
| Starting method | Self-type (with kick type) | |
| Ignition system type | Full transistor battery ignition | |
| Lubrication method | Pumping splash combination type | |
| Fuel tank capacity (L) | 4.5 | |
| Clutch type | Dry type multi-plate shoe type | |
| Transmission type | Continuously variable transmission (V-matic) | |
| Gear ratio | 1st speed | 2.520 ~ 0.820 |
| Caster angle (degrees)/trail amount (mm) | 26 ° 35´/85 | |
| Tires | Front | 100/90-12 59J |
| Rear | 110/90-12 64L | |
| Brake type | Front | Hydraulic disc |
| Rear | Mechanical Reading Trailing | |
| Suspension method | Front | Telescopic method / Up-Side-Down |
| Rear | Unit swing type | |
| Frame format | Underbone | |
Manufacturer/Thai Honda Manufacturing Co., Ltd. Country of manufacture/Thailand Importer/Honda Motor Co., Ltd.
2013 Honda Zoomer X Price
Sales plan (Japan domestic market /annual) : 5,000 units
Manufacturer’s suggested retail price in Japan : 270,900 yen (main unit price excluding consumption tax 258,000 yen)
* Prices (including recycling costs) do not include insurance premiums, taxes (excluding consumption tax), and various costs associated with registration.
