1969-1971 Yamaha AT1MX Specs and Photos Gallery | Old Classic 2-Stroke Dirtbike
 |

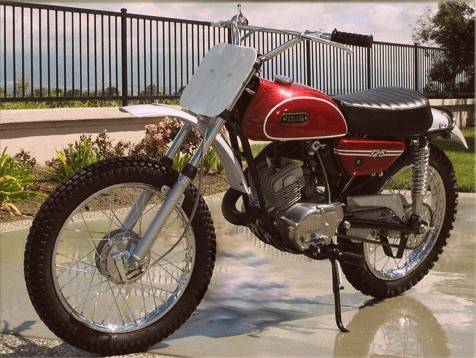

| Picture of Yamaha AT1-MX. Model Year: 1971. Colour: Red |
Yamaha AT1-MX (1969-1971) is a motorcross version of the regular AT1 enduro/adventure bike with some changes such as weight reduction, 2-stroke 123cc engine configuration, different gear ratio, etc. to get better performance for competition.
The M or MX is stands for the Motorcross edition. The M models were very similar to the regular models but has some differences on performance enhancing features, such as weight reduction, higher compression ratio, tuned exhaust, larger carburettor with 26 mm throttle bore, tires fit, tuned gearing ratio, etc. Yamaha AT1-MX is way lighter to get a better entry level motorcross. Produced only in short periode of time, from year of 1969 to 1971.
1969-1971 Yamaha AT1-MX Specifications
| Model | AT1-MX |
| Year | 1969-1971 |
| Based on | Yamaha AT1 |
| Frame/Engine Prefix (XXX-000101) | AT1 |
| Capacity (cc) | 123 |
| Bore (mm) | 56 |
| Stroke (mm) | 50 |
| Compression Ratio (to 1) | 8.0 |
| Bhp @ rpm | 18 @ 8,500 |
| Torque (kgm) @ rpm | 1.57 @ 7,500 |
| Engine Cooling | Air |
| Oil System | Autolube |
| Carburetor (mm) | VM26SH |
| Ignition System | Magneto |
| Ignition Timing (mm) | 2.0 |
| Primary drive gearing | 3.9 |
| Final Drive Gearing | 45/14 (45/15) |
| Box Gearing 1st | 3.18 (2.831) |
| Box Gearing 2nd | 2.0 (1.88) |
| Box Gearing 3rd | 1.37 (1,372) |
| Box Gearing 4th | 1.0 (1.092) |
| Box Gearing 5th | 0.8 (0.962) |
| Box Gearing 6th | – |
| Fuel Capacity (liters) | 7 |
| Engine Oil Capacity (liters) | 1.23 |
| Gearbox Oil Capacity (Liters) | 0.74 (0.762) |
| Fork Oil Ca. (cc/leg) | 160 (1501) |
| Front Tire (stock) | 3.00 x 18 |
| Rear Tire (stock) | 3.25 x 18 |
| Front Brake | Drum |
| Rear Brake | Drum |
| Rear Suspension | Twin shock |
| Front Susp. Travel (mm) | 145 |
| Rear Susp. Travel (mm) | 110 |
| Rake (degrees) | 29.5 |
| Trail (mm) | |
| Width (mm) | 909 |
| Ground Clearance (mm) | 225 |
| Wheelbase (mm) | 1,285 |
| Dry Weight (kg) | 91 |
These bikes are 6 volt, kick start motors.
Models, Colors and Vehicle Identity Number
Check VIN tables for colors for your specific year.
| Models | Colour | VIN |
|---|---|---|
| AT1M 1969 MX Version | Pearl White | AT1-300101 to AT1-303790 |
| AT1M-B 1970 MX Version | Competition Yellow | AT1-310101 to AT1-312326 |
| AT1M-C 1971 MX Version | Brilliant Red | AT1-313101 to AT1-317191 |
Yamaha AT-1 MX Photos Gallery
 |

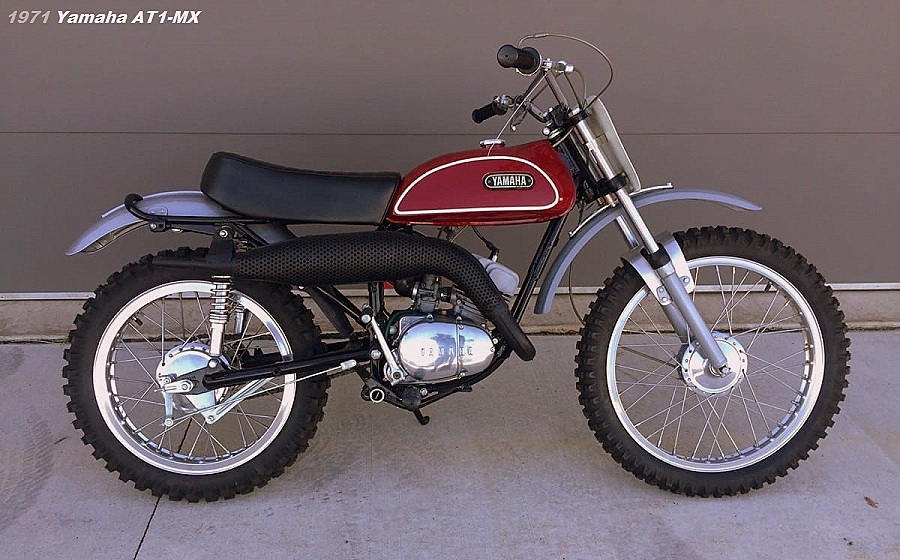

| 1971 Yamaha AT1-MX picture. Vintage Motorcross collection. |
 |
| Restored Yamaha AT1-MX 125 1971. |
 |

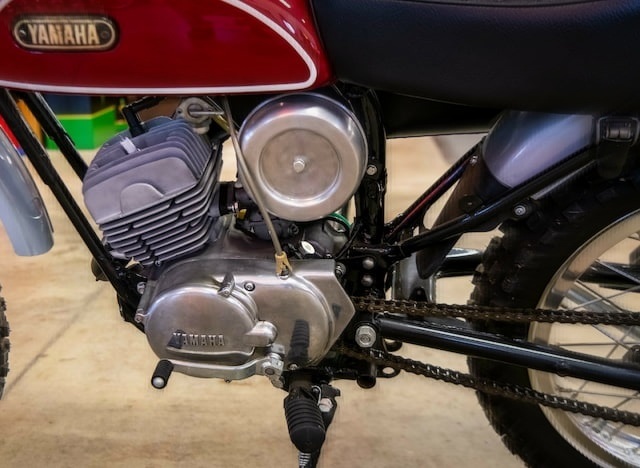

| 1971 Yamaha AT1-MX 123cc 2-stroke engine photo. |
