1980-1983 Yamaha XT250 First Generation – Claasic Sport Trail Enduro Motorcycle Photos, Specifications, Review and Price
The first generation Yamaha XT250 is a classic trail motorcycle with 4-stroke single cylinder 250cc engine manufactured by Yamaha. It was released on 1980 and prodused until 1983. This trail motorbike model featured a powerful four-stroke 250cc 1-cylinder engine with linear power-development characteristics mounted on a diamond type frame. It could reach a top speed of 70 mph (112 km/h). Claimed horsepower was 18.37 HP (13.7 KW) @ 7500 RPM. Maximum torque was 14.01 ft/lbs (19.0 Nm) @ 6500 RPM. The rear’s Yamaha-exclusive Monocross suspension helped achieve a light body weight of 114 kg. It became popular as a “super trail” model well suited for a wide range of off-road use, from dirt and woods riding to enduro racing.
 |

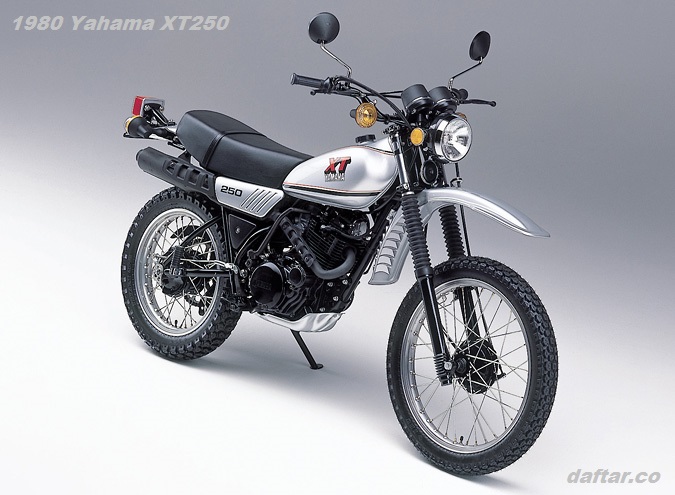

| 1980 Yamaha XT250 photo. |
1st Generation Yamaha XT250 Specs
| Manufacturer | Yamaha |
| Production | 1980 – 1981 – 1982 – 1983 |
| Also called | XT 250 (reduced effect) |
| Class | Enduro |
| Engine | Air-cooled, 4-stroke, SOHC, 2-valve, single-cylinder, 249cm³ |
| Bore / Stroke | 74.0mm x 58.0mm |
| Compression ratio | 9.5:1 |
| Horsepower | 15.4kW (21.0PS) / 8,000r/min |
| Torque | 19.6N･m (2.0kgf･m) / 6,500r/min |
| Top Speed | 70 mph (112 km/h) |
| Ignition | transistor controlled ignition |
| Spark Plug | NGK BP7ES ’80-83 NGK D8EA ’84 |
| Battery | YUASA 6N6-3B-1 ’80-83 YUASA YB3L-B ’84 |
| Air Filter | K&N YA-2509 |
| Transmission | Gear box: 5-speed Final Drive: chain Clutch: multiple-disc wet |
| Suspension | Front: 35mm telescopic fork Rear: swingarm w/rebound-adjustable single shock |
| Brakes | Front: drumb brake/tromol Rear: drumb brake |
| Front Tire Size | 2.75-21 |
| Rear Tire Size | 120/80-18 |
| Wheelbase | 53.5 inches (1359 mm) |
| Overall length × width × height | 2,135mm × 885mm × 1,170mm |
| Weight | 114kg |
| Seat Height | 31.89 inches (810 mm) |
| Oil Filter | K&N KN-145[1] |
| Oil Capacity | 0.37 Gallon (1.40 Liters) |
| Recommended Oil | Yamalube 10w-40 |
| Fuel Capacity | 2.6 Gallon (9.84 Liters) |
| Fuel Consumption | 3.10 liters/100 km (32.3 km/l or 75.88 mpg) |
| Related | Yamaha SR250, Yamaha XT250T |
1980 Yamaha XT250 Price: ¥298,000
 |

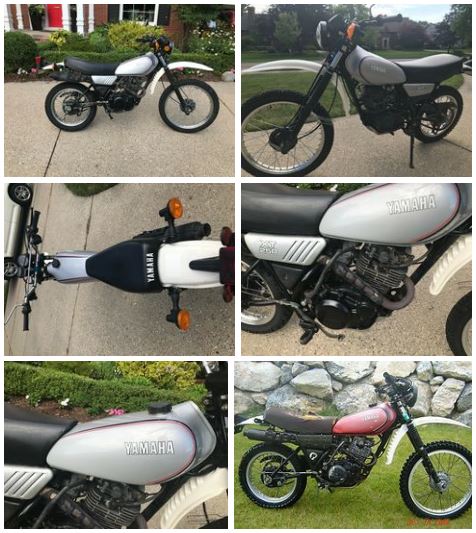

| 1980 Yamaha XT 250 pictures |
